Rumah > Produk> Detektor Multi Gas> Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD

Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD

Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD
Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD
Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD
Informasi Dasar
Tempat asal: CINA
Nama merek: SAFEGAS
Sertifikasi: Chinese EX certificate
Nomor model: Sky8000
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Karton
Waktu pengiriman: 10 hari kerja
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 300 buah per bulan
Harga terbaik Hubungi sekarang
Informasi Detail
Suhu: -20℃~+50℃ Jaminan: 12 Bulan
Kelembaban: 0~95%RH (tanpa kondensasi) Warna: Hitam Dengan Hijau
Kekuatan: Baterai Polimer Litium Spesifikasi penyelidikan: Diperlukan, pilih sesuai dengan suhu dan panjang probe
Metode pengambilan sampel: Memompa hisap Berat: 3700g
Mendeteksi gas: H2S CL2 H2 EX CH4O CXHY O2 Fungsi cetak: Opsional dengan printer portabel internal atau printer bluetooth eksternal

Deskripsi Produk

Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer
For Chemical Plant Leakage Toxic And Combustible Gas Safety Inspection
Product Overview
The SKY8000 is a portable gas analysis instrument widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, and indoor air analysis applications. This analytical instrument can flexibly detect 1-18 types of gases with 1-3 selectable modules. Each module corresponds to one pump, and the internal modular structure enables separate air intake for interfering gases, effectively avoiding cross-interference.
Features include a 3.5-inch high-definition IPS LCD color screen with 150-degree wide viewing angle, Chinese and English operation interface, fall alarm, password protection, and safety reminder functions. Optional high-temperature probe enables gas concentration monitoring in harsh high-temperature, high-humidity environments. The large-capacity lithium battery provides extended standby time, while the instrument casing is constructed from high-strength engineering materials with ergonomic design for practical operation.
Applications
  • Petroleum refining workshop toxic flammable gas leakage early warning
  • Sewage treatment plant H2S chlorine gas safety monitoring
  • Chemical raw material storage warehouse combustible gas detection
  • Natural gas pipeline maintenance multi-gas leakage sampling inspection
  • Pesticide production workshop harmful toxic gas concentration testing
  • Methanol chemical synthesis workshop CXHY gas explosion risk monitoring
  • And more industrial applications
Product Images

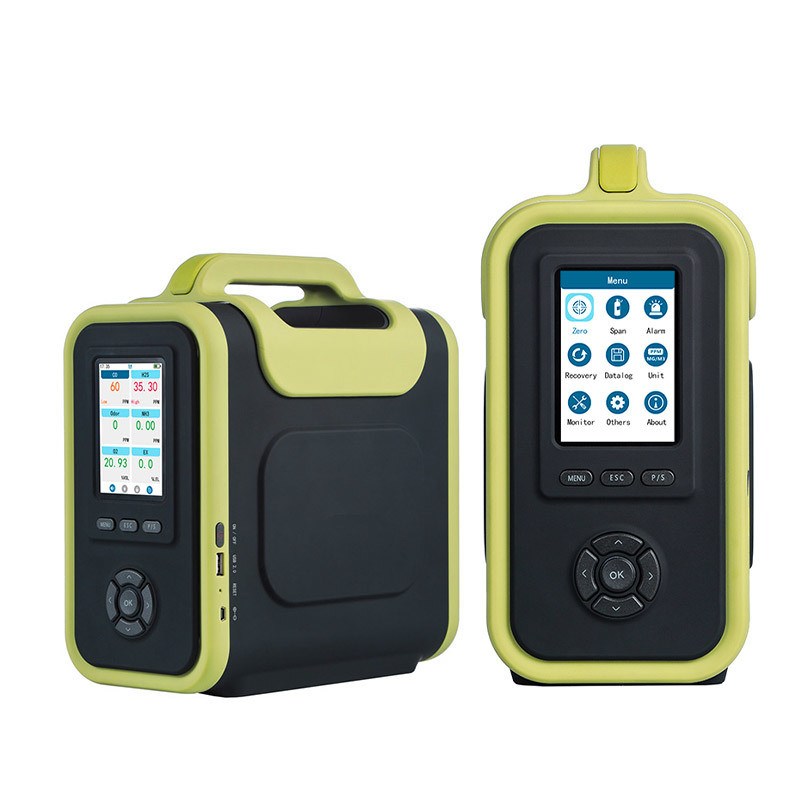

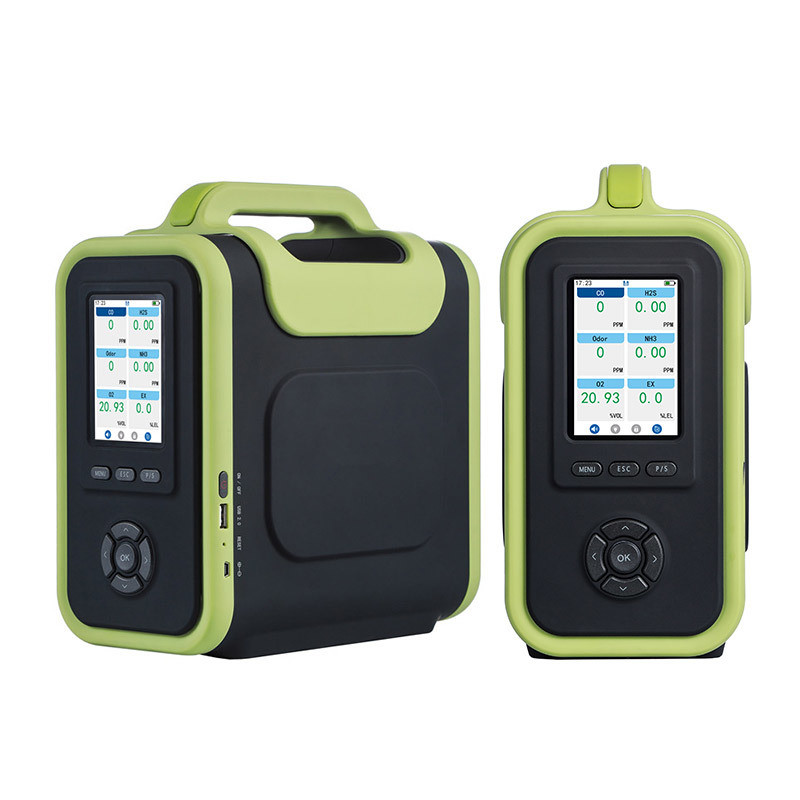

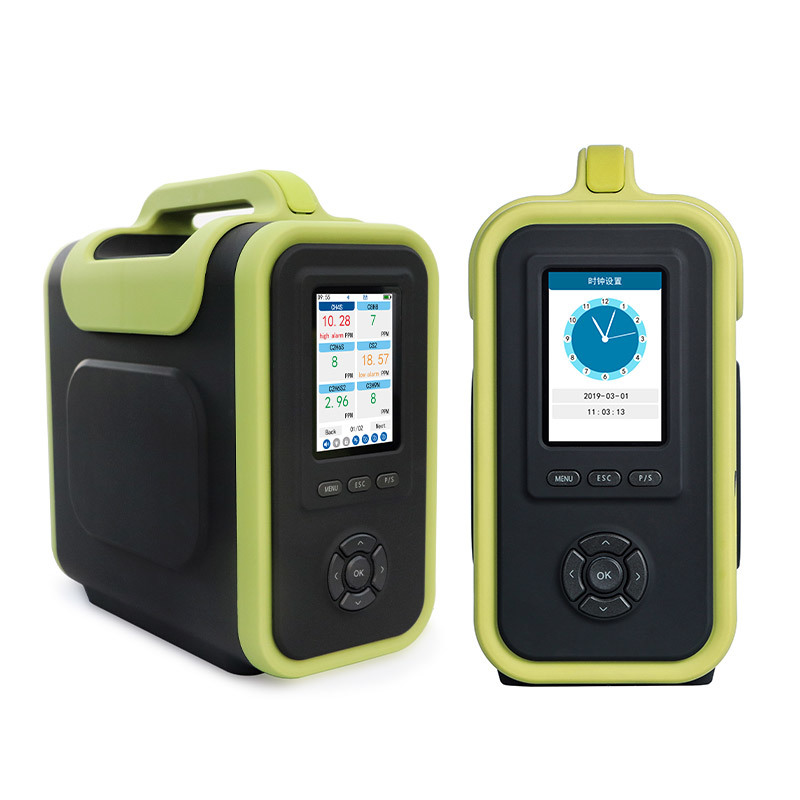

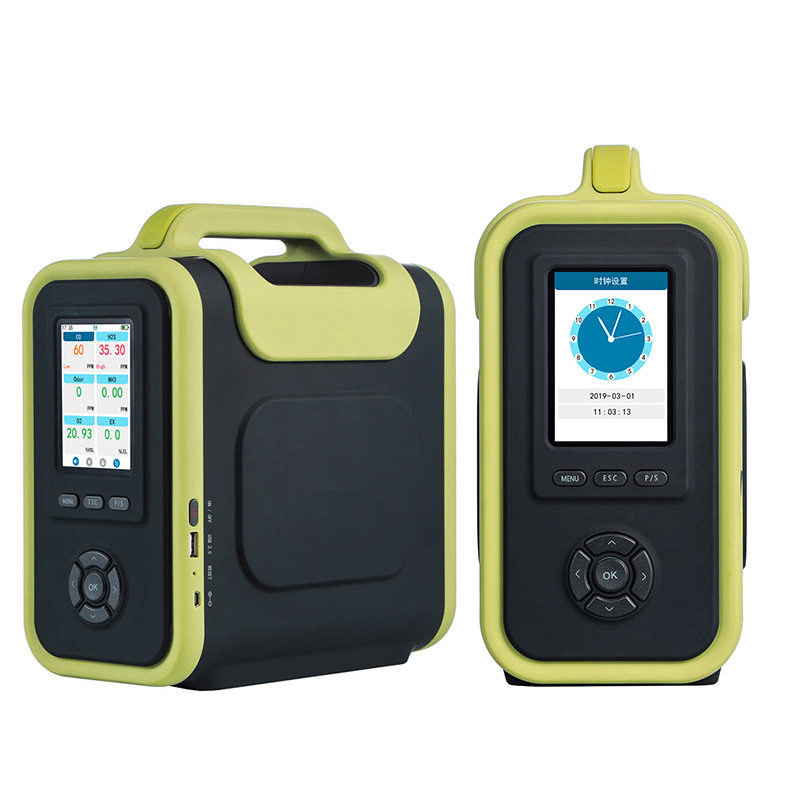

SKY8000 Gas Analyzer front view SKY8000 Gas Analyzer side view SKY8000 Gas Analyzer display screen SKY8000 Gas Analyzer with accessories SKY8000 Gas Analyzer in use SKY8000 Gas Analyzer detailed view
Product Specifications
Sensors Specified according to application
Gas Detected H2S, CL2, H2, EX, CH4O, CXHY, O2
Measure Range Specified according to application
Resolution Specified according to application
Display Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data Storage Independent SD memory card, Max.32G, measurement data can be recorded automatically, customizable record time interval
Data Transmission and Download RS485 signal output, USB interface data transmission, with upper computer software for downloading storage, analyzing and printing data
Print Function (Optional) Optional with internal portable printer or external bluetooth printer
Print Content (Optional) Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.
Charger Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer)
Language Chinese/English
Wireless Network (Optional) Bluetooth
Network Frequency 2.4G high frequency
Wireless Transmission Distance Bluetooth is less than 10m
Probe Specifications The smoke environment must be equipped with a high temperature probe gun, which can be resistant to high temperatures of 600°C or 1000°C. The probe length can be 0.3m, 0.7m and 1m.
Product Advantages
Exterior Design & Display
Convenient carrying handle design with heavy, stylish body using aviation wear-resistant materials. Features a 3.5-inch high-definition color screen with high resolution and wide viewing angle. Beautiful and user-friendly interface with intuitive interactive operation.
Modular Internal Structure
Industry-first analytical instrument with patented modular internal structure. Up to three detection modules, each capable of detecting up to six gases. Independent modules with separate air intake effectively avoid cross-interference between gases for more accurate detection.
High Customizability
Up to 18 sensors can be selected to meet requirements for simultaneous detection and analysis of 18 gases. Customizable flue gas measurement capable of detecting up to 9 gases simultaneously.
Flexible Multi-Pump System
Air supply system with up to three pumps allows arbitrary pump switching. Blocks cross-gas loss to relevant sensors, prolonging sensor service life. Adjustable pump flow rate across ten different gears to meet various space environments and ensure accuracy.
Multiple Display Modes
Supports gas concentration data display and real-time curve display modes with arbitrary switching capability.
Comprehensive Data Storage
Standard 8G SD memory card with continuous storage up to seven years at 5-second intervals. Historical data and curves viewable directly on instrument or exportable via USB flash drive. Stores real-time data values, alarm values, maximum and minimum values, viewable by date.
Multiple Security Protection
Fall alarm function for underground worker safety (optional). Password protection prevents unauthorized parameter modification. Safety alert feature enhances operator comfort. High and low alarm lock function captures sudden gas concentration changes.
User-Friendly Features
Supports PPM/mg/m³ gas unit switching with automatic concentration conversion. Individual channel sensor factory reset capability. Chinese/English language switching. Timed shutdown function with intelligent settings. Sensor overload automatic protection. Built-in thermal printer for one-click data printing (optional). Wireless communication module for real-time monitoring via computer web client and mobile app (optional). Optional high-temperature sampling probe up to 1200°C (optional).
Standard Accessories
  • One User manual
  • One certificate/warranty card
  • One 8G large capacity SD card (more capacity needs to be customized)
  • One charging adapter
  • One water trap filter
  • One intake sampling probe
  • One 1000mm hose
  • One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional Accessories
  • Printer (built-in thermal printer) one
  • A set of high temperature flue gas detectors
Why Choose Safegas?
  • R&D Team Experience: Over 25 years
  • Company Certification: ISO9001, ISO45001
  • Product Certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly Capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Through 16 years of rapid development, Safegas has become an influential supplier for environmental monitoring equipment and systems in domestic and overseas markets. Our management philosophy emphasizes "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas gathers talented professionals who cooperate effectively in product development, production, and maintenance.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas products are domestically advanced and can compete with overseas brands. We continuously seek development and progress to meet diversified customer demands.
Safegas company certification Safegas product certification
