Rumah > Produk> Detektor Gas Tunggal> Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety

Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety

Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety
Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety
Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety Explosion Proof NO2 Gas Detector with IP68 Waterproof Protection and Electrochemical Principle for Industrial Safety
Informasi Dasar
Tempat asal: CINA
Nama merek: SAFEGAS
Sertifikasi: ATEX/EMC/IECEX
Nomor model: Minimeta
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Karton
Waktu pengiriman: 3 hari kerja
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 3000 Potongan Per Bulan
Harga terbaik Hubungi sekarang
Informasi Detail
Resolusi: 0,01ppm Tekanan Udara Kerja: 86 hingga 106kpa
Menampilkan: Nama gas, daya baterai, unit konsentrasi, nilai terukur Gas terdeteksi: No2
Rentang ukuran: 0-100PPM,0-500PPM Berat (Dengan Klip): 125 gram
Prinsip: Prinsip elektrokimia Sertifikasi anti-ledakan: Iecex, atex
Ukuran: 90mm*60mm*33mm (panjang*lebar*tebal) Mode Catu Daya:: Baterai kering 3,6V (tidak dapat diisi ulang dan dapat diganti)
Prinsip Deteksi: Difusi Jenis Alarm: Alarm rendah, alarm tinggi, STEL, TWA, kalibrasi opsional baterai lemah dan uji benturan
Waktu respons (T90): 15 hingga 30 tahun Ketepatan: ≤ ± 2-5%FS
Suhu Kerja: -20 ℃ hingga 55 ℃ Kelembaban kerja (non-condensing): 0-95% RH
Mode alarm: Alarm suara, cahaya, getaran Kelas Perlindungan: IP66/68

Deskripsi Produk

Explosion Proof Nitrogen Dioxide Gas Detector Portable NO2 Toxic Gas Industrial Safety Alarm
Product Overview

Portable NO2 Gas Detector IP68 Waterproof Industrial Usage

Minimeta Portable NO2 Gas Detector is a high-precision portable gas detector for nitrogen dioxide detection using diffusion detection principle, designed for industrial safety applications.

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector that can detect hundreds of user-selected toxic gases. User-friendly and easy to operate, it features replaceable battery and sensor for long-term protection. Designed to offer a low-cost, long-term ownership gas monitoring system.

Key Features
  • IP68 water- and dust-resistant case
  • Low power consumption with 2 years standby time - no battery charging or calibration needed
  • Optional single/multi unit docking station for daily bump test and calibration
  • Event and data logging function
  • Self-test function for improved safety through automatic self-testing
  • Small size, lightweight design with back clip for easy carrying
  • 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
Applications
  • Industrial combustion waste gas environmental monitoring
  • Chemical nitration workshop toxic gas leakage detection
  • Tunnel construction vehicle exhaust safety inspection
  • Mining underground blasting flue gas testing
  • Printing factory nitric acid workshop gas early warning
  • Municipal waste incineration plant exhaust detection
  • And more industrial applications
Portable Nitrogen Dioxide Gas Detector front view showing display and controls
Portable Nitrogen Dioxide Gas Detector side view showing compact design
Portable Nitrogen Dioxide Gas Detector display close-up showing gas concentration readings

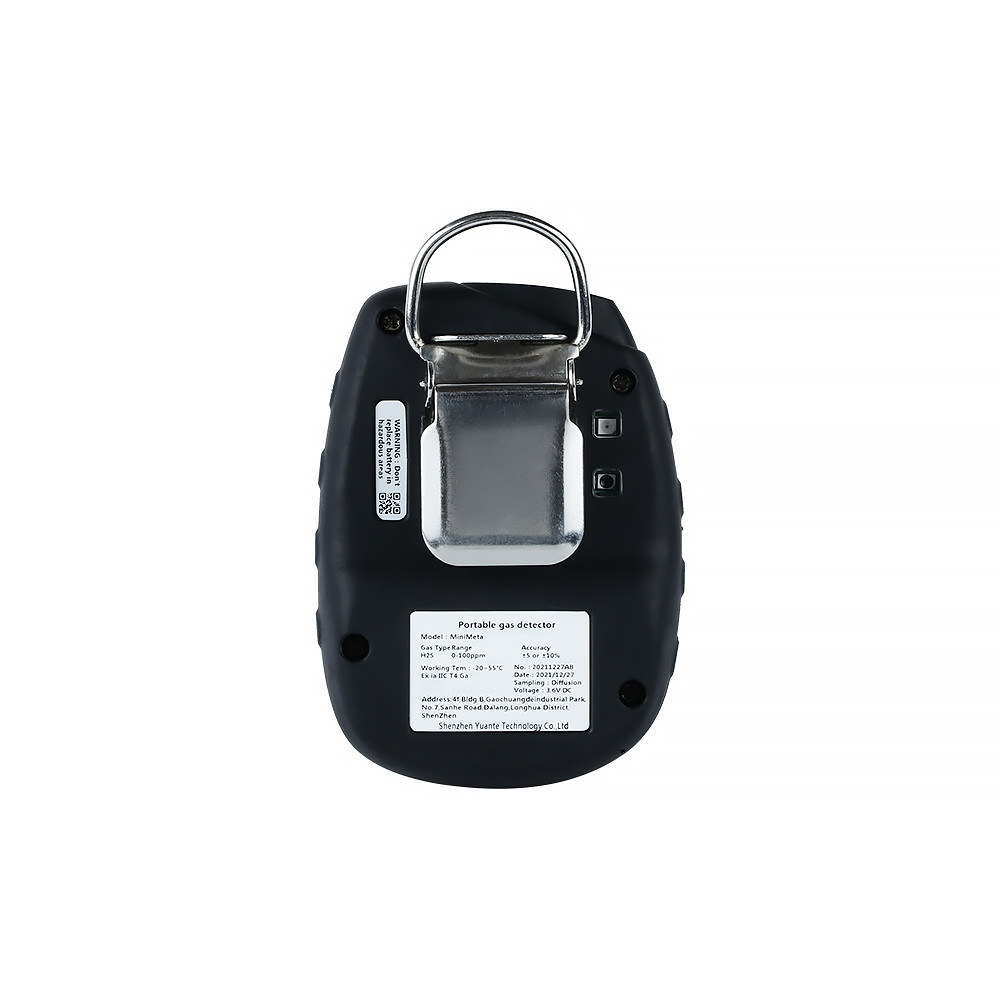

Portable Nitrogen Dioxide Gas Detector back view with carrying clip
Portable Nitrogen Dioxide Gas Detector in industrial use scenario
Technical Parameters
Parameter Specification
Detect gas NO2
Sensor type Electrochemical
Sampling method Diffusion
Measure range 0-100ppm 0-500ppm
Resolution 0.1ppm
Precision ≤± 3% F.S.
Response Time ≤30s(T90)
Unit PPM %vol lel
Display Gas name, concentration unit, measured value, electricity
Alarm mode Sound, light, vibration alarm, high and low alarm values can be set by user
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Display LCD Display
Operating language Chinese/English
Size 90*60*33mm
Weight 125g
Working Temperature -20ºC~50ºC
Working Humidity 0-95%RH
Working air pressure 86~106kpa
Company Advantages
  • R&D team experience: over 25 years
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx, ATEX, CE
  • Delivery time: 5-7 days
  • Annual capacity: 80,000 units
  • Professional 7*24 hours customer service
Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:

  • Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
  • Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controllers: YT-1100H, YT-1600H, YT-1800H
  • Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
Gas detection product line overview showing various portable and fixed detectors
Industrial gas detection systems installed in facility
Gas detection controller units with display panels
