Name: SKY3000 VOC Hunter PID Sensor Gas Detector with 0-1000ppm Range IP67 Protection and Ex ia IIC T4 Ga
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: LANGIT-3000
Price: 2,210.00 USD
Availability: InStock

Informasi Detail

Gas terdeteksi:	VOC (Senyawa Organik Yang Mudah Menguap) – Sensor PID	Rentang Pengukuran:	0 - 1000 ppm
Resolusi:	1 ppm	Waktu respons (T90):	≤30 detik
Metode pengambilan sampel:	Modus pompa	Waktu Kerja Pompa:	>15 jam dalam pemompaan terus menerus
Menampilkan:	LCD 160×96, dapat diputar 180°, dengan lampu latar	Baterai:	Litium isi ulang 3.7V, 2200mAh

Deskripsi Produk

SKY3000 "VOC Hunter" – PID Sensor Pumped Gas Detector

Product Overview

A field-hardened, certified instrument for volatile organic compound measurement. Designed for industrial hygiene, leak hunting, and confined space entry.

Detection Capability

Detects VOC (Volatile Organic Compounds) using a PID sensor

Measurement Range

0-1000 ppm | Resolution: 1 ppm

Sampling Method

Pump mode

Certifications

IECEx ATEX IP67 3m Drop

Why VOC Monitoring Matters

VOC stands for Volatile Organic Compounds - hundreds of chemicals that evaporate at room temperature, such as benzene, toluene, xylene, formaldehyde, and gasoline vapors. Common sources include paints, solvents, fuels, adhesives, and industrial emissions.

Short-term exposure can irritate eyes, nose, and throat; long-term exposure may cause liver/kidney damage or cancer. A PID sensor detects a wide VOC range with high sensitivity - essential for leak detection, confined space safety, and industrial hygiene.

Key Differentiators

Dual Sampling - Pump First, Diffusion as Backup

The built-in pump actively pulls air for fast response. If the pump fails (or in a special emergency), the detector automatically switches to diffusion mode and raises a pump-failure alarm. You never lose gas awareness.

Data Export Without Hassle

No drivers, no software. Connect via USB - the SKY3000 appears as a removable drive. Copy the CSV log files (100,000 records max, logging interval 5-3600 seconds adjustable).

Built for Rough Jobs

IP67: Complete dust seal + immersion up to 1m
3-metre drop resistance
EMC anti-static design
Water trap filter included (protects pump and sensor from moisture/dust)

Safety Net for Lone Workers

The man-down alarm (standard) triggers if the operator remains motionless for a set time.

Optional Wireless & Docking

LoRa or Bluetooth modules enable remote real-time monitoring
DKS-3000 docking station automates bump tests, calibration, and data management

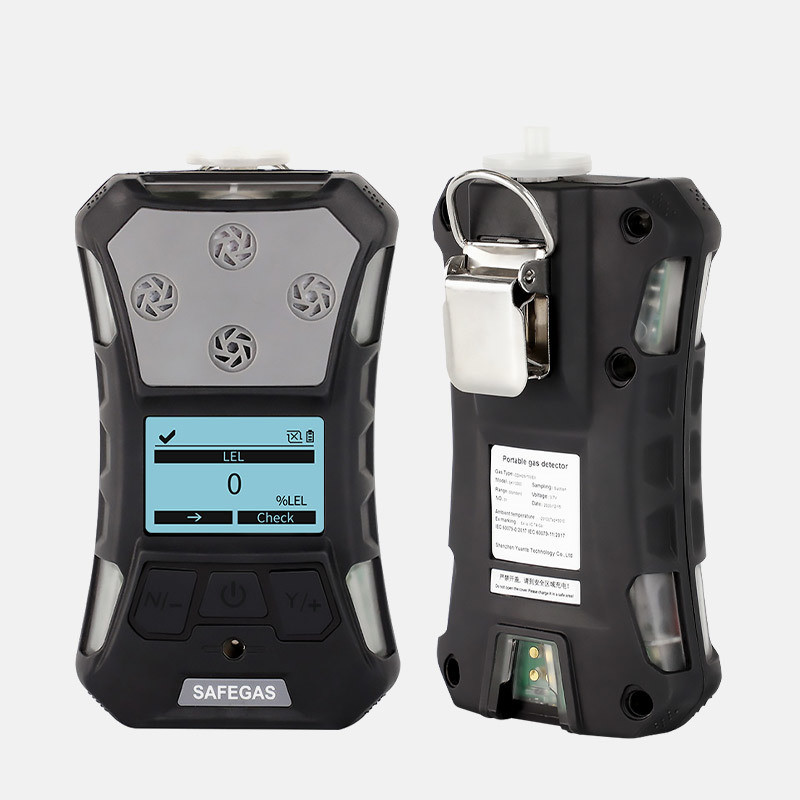

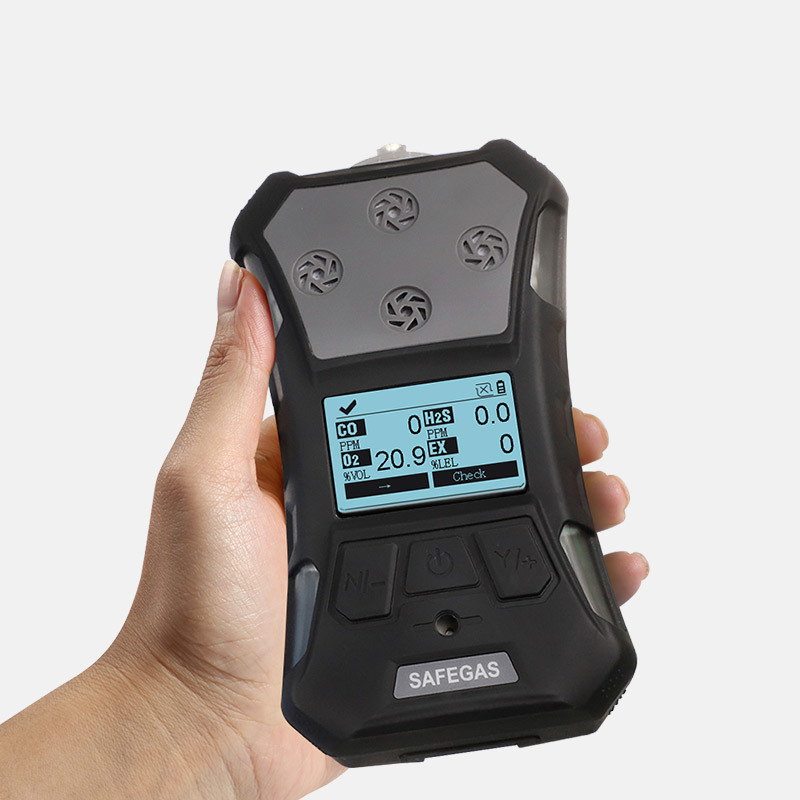

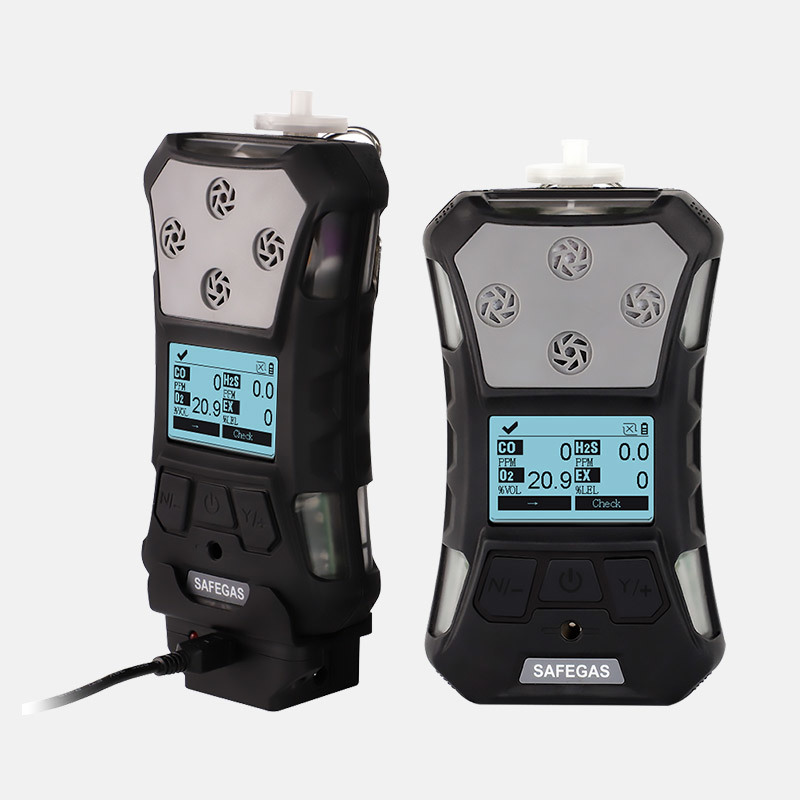

Product Images

Technical Specifications

Category	Detail
Gas & Sensor	VOC, PID (photoionization detector)
Measurement Range	0 - 1000 ppm
Resolution	1 ppm
T90 Response Time	≤30 seconds
Precision	≤ ±2% FS
Sampling Mode	Pump + diffusion with auto fallback
Pump Continuous Runtime	>15 hours
Display	LCD 160×96, 180° rotatable, backlit
Data Logging	100,000 records; interval 5-3600 s; USB export as drive
Alarm Types	95 dB @30 cm buzzer, red flashing LED, vibration; plus man-down, pump failure, low battery
Battery	3.7V rechargeable Li-ion, 2200 mAh
Charging	Travel charger (DC); ≥4 hours
Explosion Certifications	IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Ingress Protection	IP67
Drop Resistance	3 metres
Operating Temperature	-20°C to +50°C
Humidity	10-90% RH (non-condensing)
Pressure Range	86-106 kPa
Dimensions (incl. clip & filter)	157 × 84.5 × 59.5 mm
Weight (incl. battery, clip, filter)	365 g

Professional Applications

Petrochemical & chemical plants - leak detection, turnarounds
Confined space entry - tanks, vessels, sewers
Industrial hygiene - worker exposure monitoring
Environmental site assessment - soil vapor, spill investigation
Paint & coating facilities - solvent vapor control
Pharmaceutical manufacturing - residual solvent checks
Fire & hazmat response - post-fire off-gas screening
Refineries & fuel storage - hydrocarbon vapor detection

Optional DKS-3000 Docking Station

Feature	Description
Compatibility	SKY3000 (4-in-1: CO/H₂S/O₂/LEL)
Functions	Bump test, calibration, configuration, data recording
Capacity	1 unit at a time
Portability	Battery powered - up to 3000 bump tests per charge
Internal Storage	32 GB SD card (>100,000 records)
Data Export	USB port for U-disk (logs, calibration reports, configs)
Software	Safegas PC software for analysis
Indicators	5 red/green LEDs
Buttons	Bump, Cali, Power
Size / Weight	329×312×123 mm, 4.2 kg

Manufacturer Information

Shenzhen YuanTe Technology Co., Ltd. (Safegas) - founded in 2010. Over 16 years in gas detection R&D, manufacturing, and sales. Serves oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances.

Certifications: IECEx, ATEX, EMC, ISO9001, ISO45001

Annual output: >80,000 units

Delivery: 5-7 working days typical

Support: 24/7 after-sales service

Frequently Asked Questions

Question	Answer
How often to bump test?	Daily before use, especially in high-risk areas.
PID sensor lifespan?	Typically 12-24 months. Lamp can be cleaned periodically.
Can I calibrate it myself?	Yes, using known calibration gas and manual zero/span steps. Docking station automates it.
How to export without docking station?	USB cable to PC → detector appears as USB drive → copy CSV files.
What if the pump fails?	Auto-switch to diffusion mode + pump failure alarm. Readings continue.
Explosive atmospheres?	Yes, Ex ia IIC T4 Ga (Zone 0,1,2).
Battery life with pump on?	>15 hours. Diffusion mode (pump off) lasts longer.
Other gases besides VOC?	Yes, up to 6 gases: CO, H₂S, O₂, LEL, NH₃, Cl₂, NO₂, SO₂, etc. Custom configurations available.
Water trap filter included?	Yes, standard.
Warranty?	1 year for detector; sensors vary (see datasheet).

Label:

Tempat asal:	Cina
Nama merek:	Safegas
Sertifikasi:	IECEx/ATEX/EMC
Nomor model:	LANGIT-3000

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	Karton
Waktu pengiriman:	3 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	100 buah/hari
