Name: SKY3000 "Sentinel" – Rugged Pumped 4-Gas Detector (O2/CO/H2S/LEL) for Confined Space & Hazardous Zones
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Sky3000
Price: 2,210.00 USD
Availability: InStock

Informasi Detail

Presisi:	≤±1-5%FS	Ukuran Paket Tunggal:	34cm24cm14cm
Dimensi:	15784.559.5mm	Suhu Operasional:	-20°C hingga 50°C
Metode amplifikasi:	Memompa hisap	Transmisi nirkabel:	Opsional, oleh 4G, Lora, WiFi
Bahan tubuh:	PC+TPU	Dukungan gas:	6 jenis gas dalam 1 perangkat
Bahasa:	Cina, Inggris, Rusia, Polandia (lainnya berdasarkan permintaan)	Reset Pabrik:	Pemulihan satu tombol ke pengaturan default

Deskripsi Produk

SKY3000 "Sentinel" – Rugged Pumped 4-Gas Detector (O2/CO/H2S/LEL) for Confined Space & Hazardous Zones

Product Overview

The SKY3000 is a portable, high-performance gas detection instrument equipped with an internal sampling pump. It can monitor up to six gas types in a single unit. The standard factory configuration includes four common sensors: O₂, CO, H₂S, and LEL. An optional wireless communication module enables remote viewing of real-time data and alarm status. The onboard data logger stores up to 100,000 readings, and data can be exported directly to a PC without requiring any additional software.

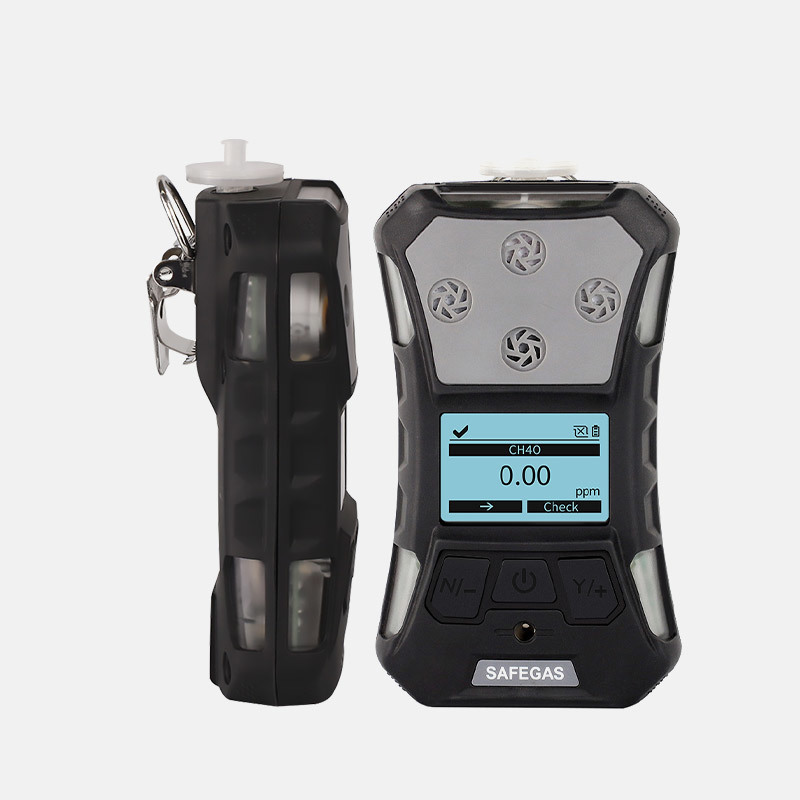

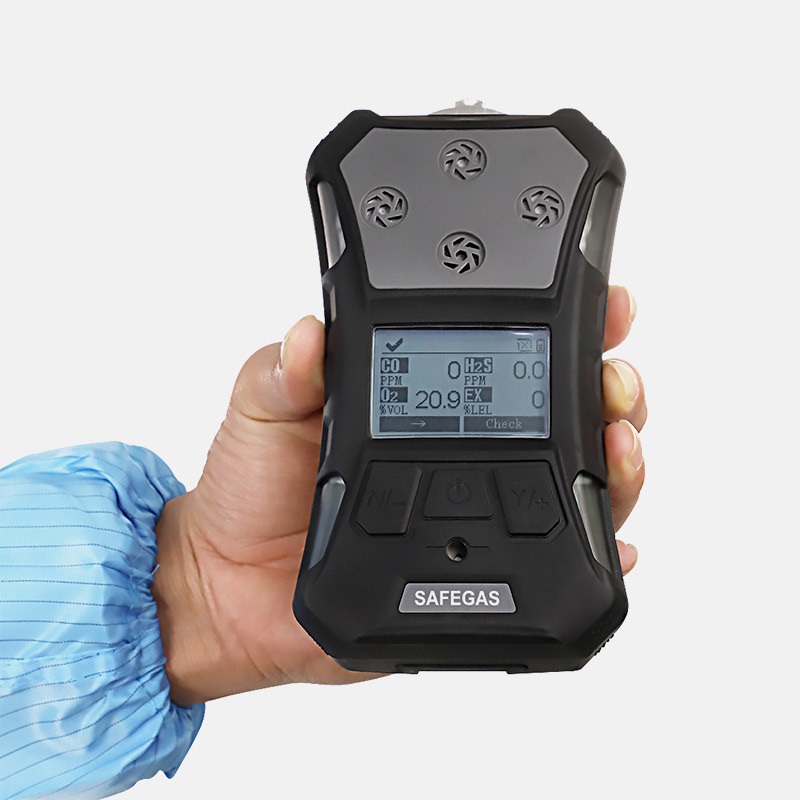

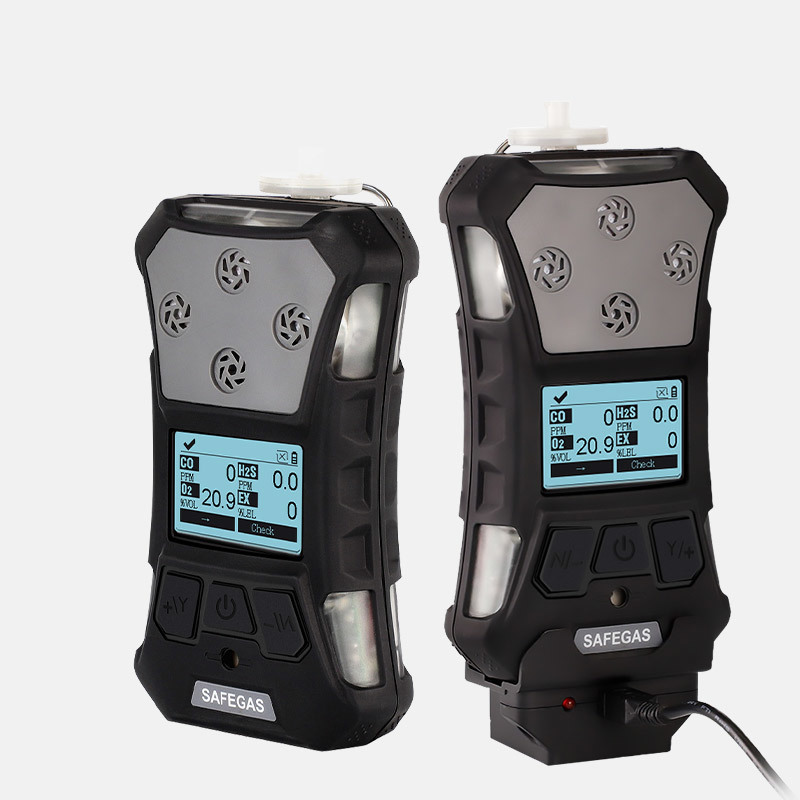

Product Images

Performance & Technical Specifications

Parameter	Value
Target Gases	O₂, CO, H₂S, LEL (combustibles)
Sensing Principle	Electrochemical (O₂/CO/H₂S), Catalytic combustion (LEL)
Measuring Ranges	O₂: 0-30%VOL; CO: 0-1000ppm; H₂S: 0-100ppm; LEL: 0-100%LEL (customizable)
Resolution	O₂: 0.1%VOL; CO: 1ppm; H₂S: 0.1ppm; LEL: 1%LEL
Response Time (T90)	≤20 seconds for all gases
Accuracy	≤±1-5% of full scale (gas-dependent)
Unit Options	ppm, mg/m³, %LEL, %VOL

Display & Interface

Parameter	Value
Display Type	LCD, 160×96 pixels, supports 180° screen rotation
Backlight	Auto-on during alarm; manual adjustable duration
Languages	Chinese, English, Russian, Polish (others on request)
Factory Reset	One-key restore to default settings

Data Logging

Parameter	Value
Capacity	100,000 records
Logging Interval	Adjustable from 5 to 3600 seconds
Export Method	Direct USB connection to PC - no driver or software needed

Physical & Environmental Specifications

Parameter	Value
Dimensions	157 × 84.5 × 59.5 mm (including back clip / water trap filter)
Weight	365g (including battery, belt clip, and filter)
Operating Temperature	-20℃ to +50℃
Humidity Range	10-90% RH (non-condensing)
Protection Rating	IP67 (dust-tight and waterproof)
Drop Resistance	3 metres
Explosion-Proof Certification	IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga

Power & Alarms

Parameter	Value
Battery	3.7V rechargeable lithium, 2200mAh capacity
Operating Hours	>15 hours with pump continuously running
Charger	Travel charger with DC interface; charging time ≥4 hours
Alarm Types	95dB @30cm buzzer, flashing red LED, vibration; alarm latch
Diagnostic Alarms	Battery under-voltage, pump failure, man-down

Key Functionality Highlights

Built-in sampling pump - Actively pulls in air for rapid response; essential for confined space entry and leak detection.
Man-down alarm (standard) - Triggers an alert if the operator remains motionless, enhancing lone-worker safety.
Rotatable large display - 180-degree screen rotation allows easy reading from any orientation.
Water trap filter (included) - Protects the pump and sensors from moisture and dust.
Wireless option - Supports Lora or Bluetooth for remote real-time monitoring.
Direct data export - Up to 100,000 records; USB transfer without drivers or extra software.
Multi-alarm system - Audible (95dB), high-brightness red LEDs, and vibration; also covers pump failure and low battery.
Rugged construction - IP67 rated and tested for 3-metre drops, built for harsh job sites.
Long runtime - Over 15 hours of continuous pumping on a full charge.
One-key reset - Quickly revert to factory settings.

Field Applications

Confined space entry (tanks, pipelines, sewers)
Oil & gas drilling and refining
Chemical and petrochemical plants
Mining and metallurgy
Fire and rescue operations
Wastewater treatment facilities
Shipbuilding and marine industries

Manufacturer Information

Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) - Established in 2010, specialising in R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, energy, environmental protection, electronics, municipal engineering, agriculture, and home appliances.

Key Advantages

25+ years of R&D experience in gas detection technology
International certifications: IECEx, ATEX, EMC for explosive atmospheres worldwide
ISO9001 & ISO45001 certified manufacturing
Typical delivery: 5-7 working days
Annual capacity: 80,000 units
24/7 professional after-sales support

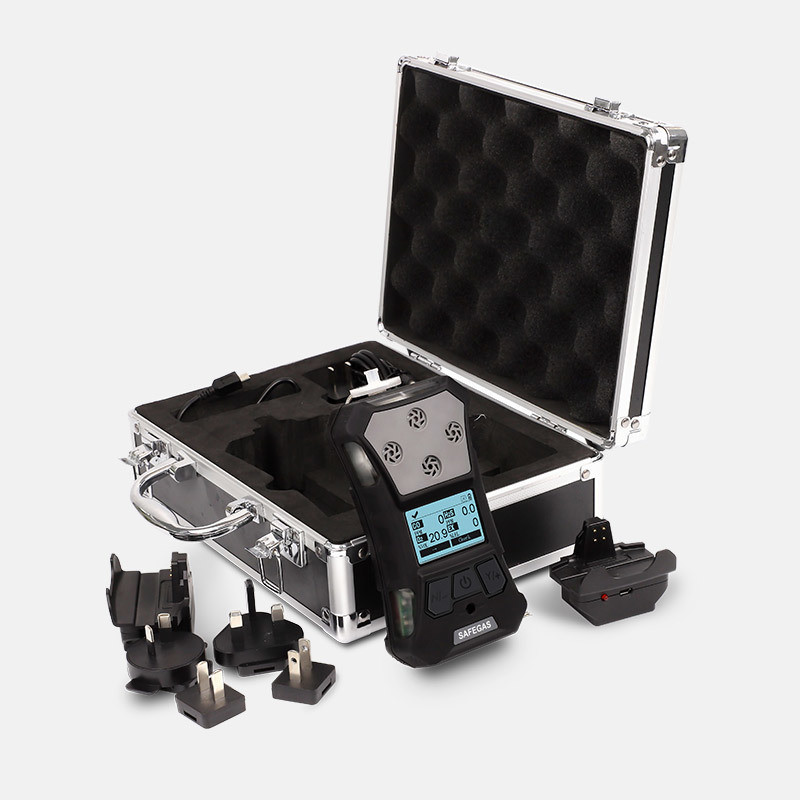

Shipment Contents

Item	Quantity
SKY3000 gas detector	1 piece
Water trap filter	1 piece
USB charging cable & travel charger (DC interface)	1 set
Calibration cap / adapter	1 piece
Belt clip (alligator style)	1 piece
User manual	1 piece
Certificate of conformity / Warranty card	1 piece

Label:

Tempat asal:	Cina
Nama merek:	Safegas
Sertifikasi:	IECEX/ATEX/EMC
Nomor model:	Sky3000

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	Karton
Waktu pengiriman:	4 Hari Kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	50 lembar/hari
