| gas: | CO H2S O2 LEL | Rentang ukuran: | 0-1000PPM 0-100PPM 0-30%VOL 0-100%LEL |
|---|---|---|---|
| Resolusi: | 1PPM 0,1PPM 0,1%VOL 1%LEL | Jenis Sensor: | Elektrokimia |
| Metode pengambilan sampel: | Difusi | Bahan: | ABS+kotak kulit |
| Menampilkan: | Tampilan grafis LCD matriks titik monokrom 128*128 | Mode alarm: | suara, cahaya dan getaran |
| Baterai: | Baterai Lithium Isi Ulang 3.7V, Dengan Kapasitas 2500mAh | satuan: | ppm, mg/m3, %VOL, %LEL |
| Ukuran paket tunggal:: | 131cm*83cm*35cm | Berat:: | 240 gram |
| Tingkat Perlindungan: | IP65 |

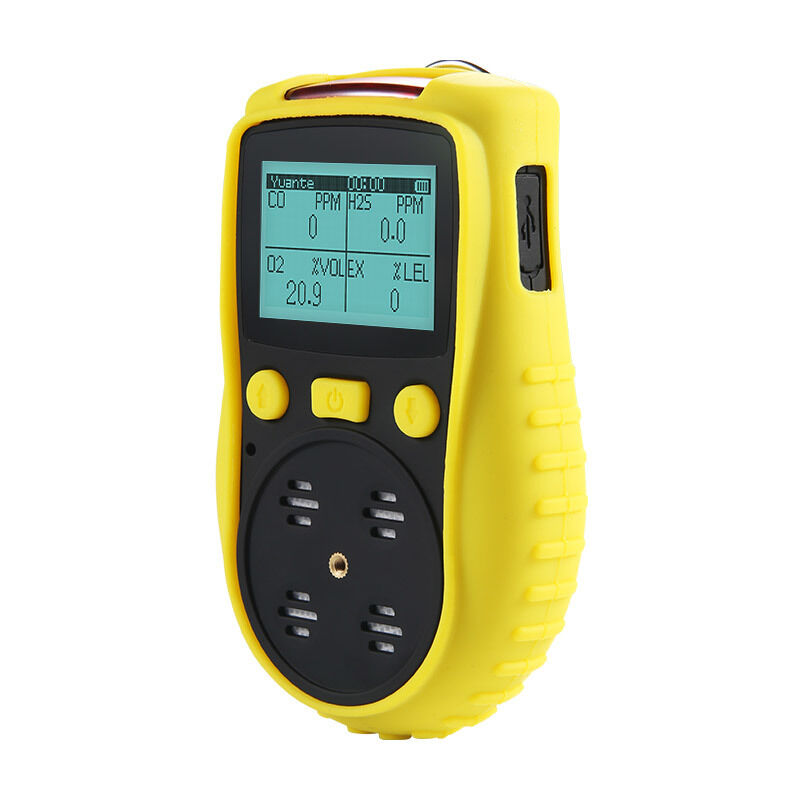

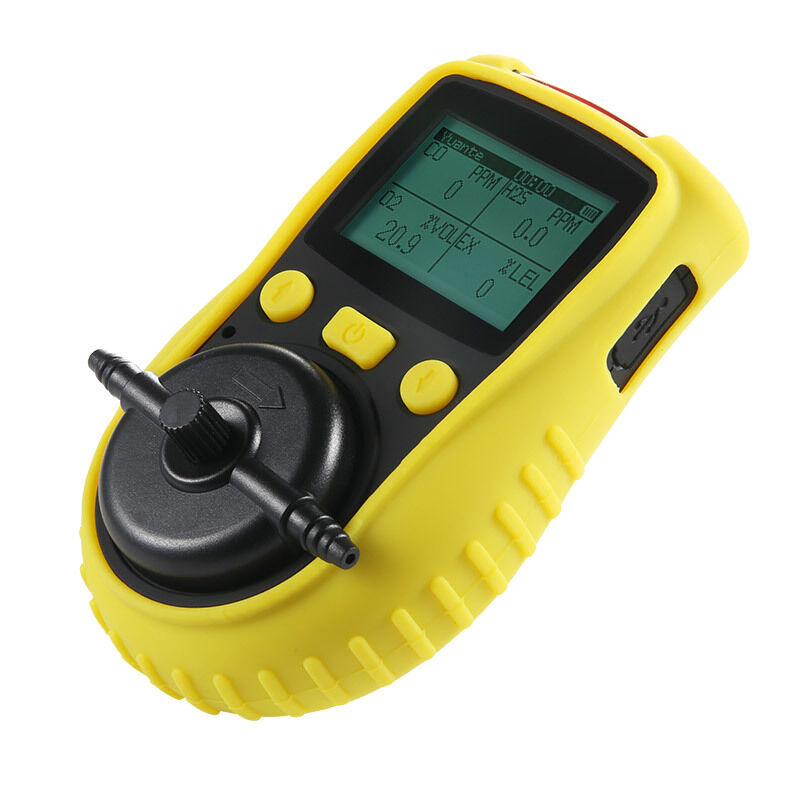

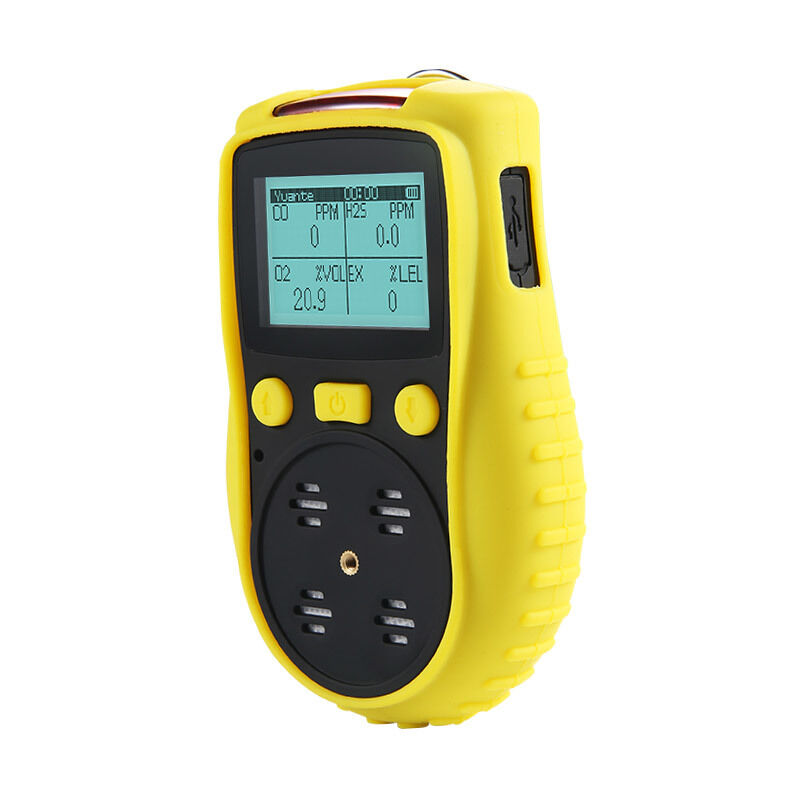

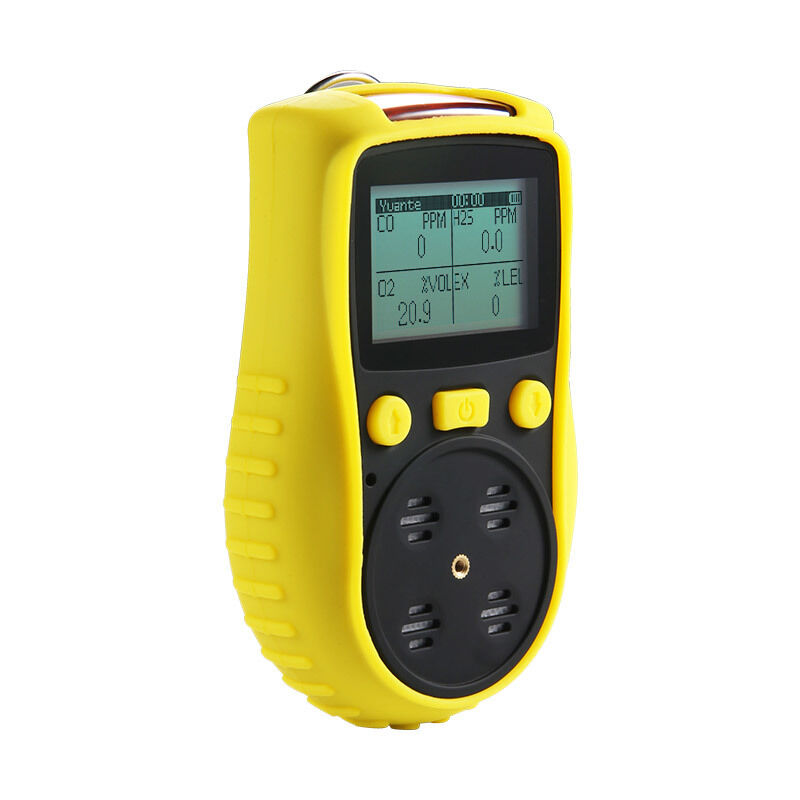

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.
The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.
| Parameter | Value |
|---|---|
| Gas Detected | Specified according to application |
| Detection Principle | Diffusion |
| Sensor Type | Specified according to application |
| Measuring Range | Specified according to application |
| Resolution | Specified according to application |
| Precision | <1-5% F.S. |
| Display | Monochrome dot matrix 128×128 LCD graphic display |
| Backlight | Settable time; auto-on during alarm |
| Data Logging | Optional: 100,000 readings (10-3600 sec interval) |
| Event Logging | 100 event records (standard, viewable on device) |
| Language | Chinese / English |
| Alarm Type | Sound, light, vibration |
| Battery | 3.7V rechargeable lithium battery, 2500mAh |
| Working Time | 14h continuous (4 gases); 200h (without LEL sensor) |
| Charger | Travel charger; charging time 4-6h |
| Explosion-Proof Grade | Ex ia IIC T4 |
| Protection Grade | IP65 |
| Working Temperature | 10°C - 50°C |
| Working Humidity | 15 - 95% RH |
| Housing Material | ABS + leather case |
| Dimensions (L × W × H) | 131 × 83 × 35 mm |
| Weight | 240g |
