Portable Single Gas Detector O2 Detector Pump And Diffusion Dual Suction
Product Overview

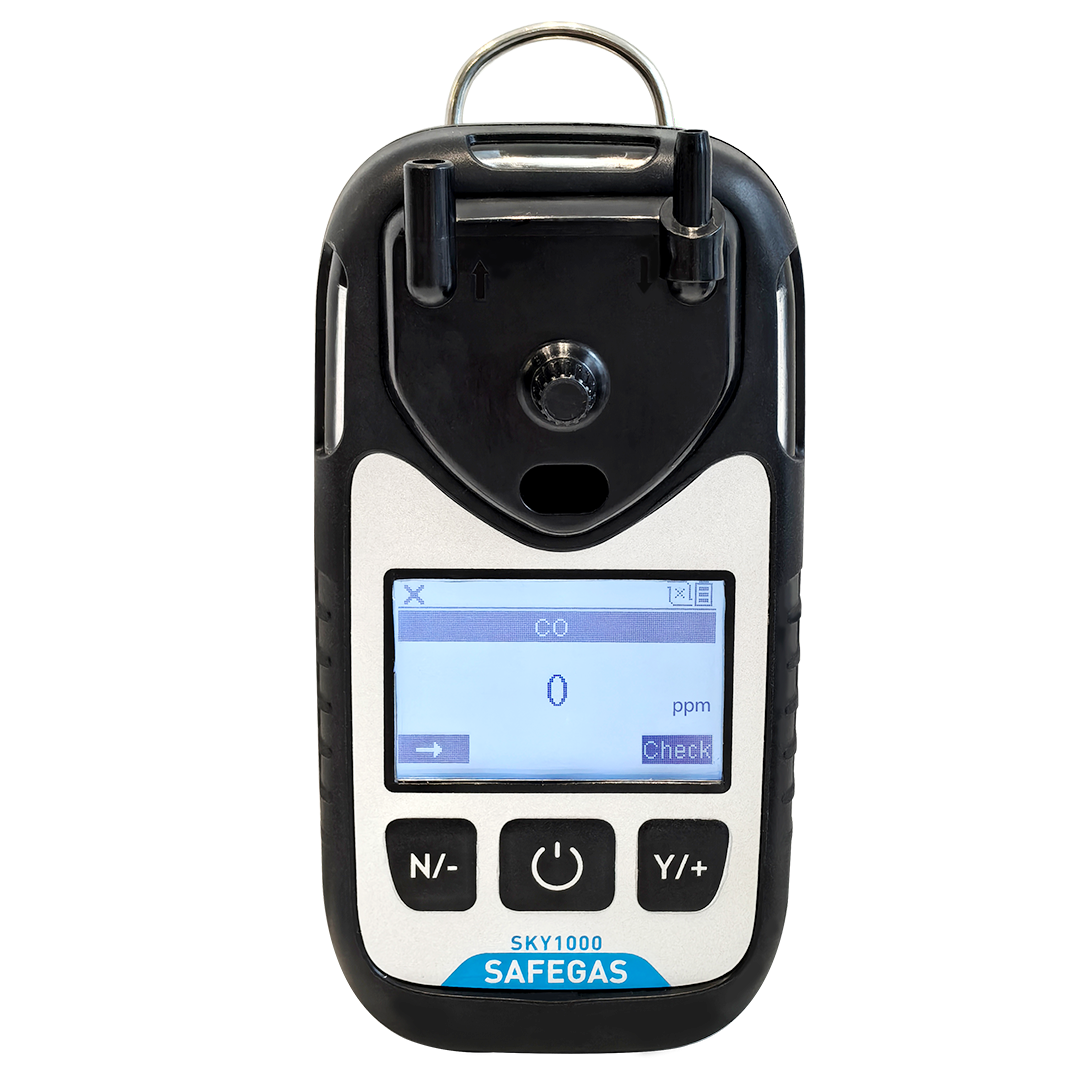

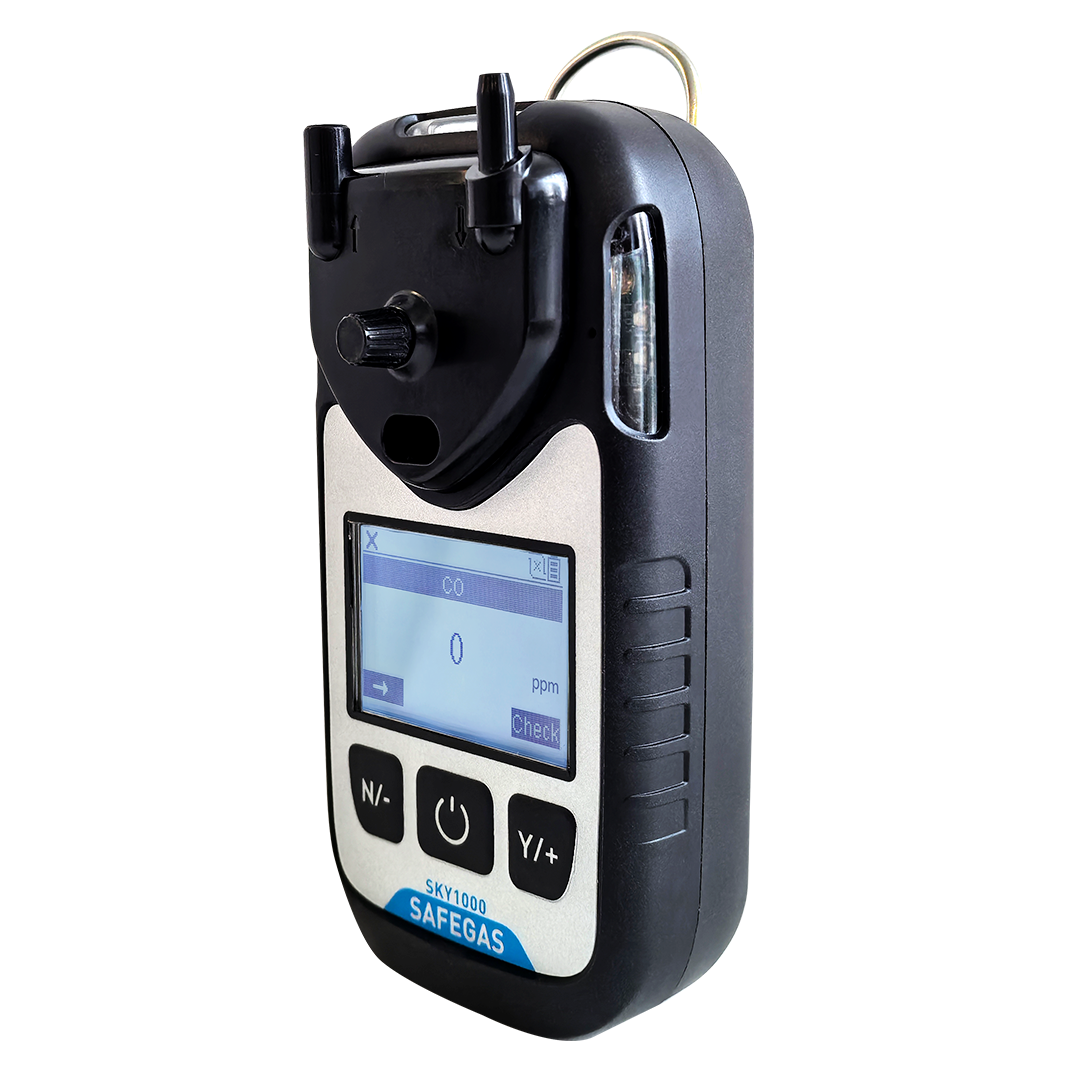

The SKY1000 is an explosion-proof single gas detector with IP66/68 rating. This lightweight, compact device features 3-button operation for easy use and can detect toxic gases, flammable gases, oxygen (O2), and TVOC gases. It supports simultaneous detection of CO and H2S gases in a single device and includes standard data logging with direct PC export for real-time data and alarm events.
Key Features
- Diffusion/pumped dual sampling method for versatile applications
- Standard man down alarm, alarm latch, password protection, ID identification
- Comprehensive data logging for alarm events, calibration, bump tests, and system records
- Multiple numerical displays: real-time value, TWA, STEL, MAX, MIN
- Self-test function for enhanced safety through automatic self-testing
- Support for span calibration and bump testing
- Remote firmware upgrade capability
- Optional wireless data transmission including Lora and Bluetooth
- One-key switching between PPM and mg/m³ gas units
Product Images
Technical Specifications
| Detect Gas |
CO, H2S, O2, VOC, flammable gas or other toxic gas |
| Sensor Type |
Electrochemical, Infrared Ray, PID |
| Sampling Method |
Diffusion and Pump suction |
| Measure Range |
Customizable |
| Resolution |
Customizable |
| Precision |
≤±3% F.S. |
| Response Time |
≤30s (T90) |
| Display |
2-inch dot matrix screen (160 * 96 resolution) 180° rotate, with backlight |
| Alarm System |
Low alarm, high alarm, STEL, TWA, low battery, man down alarm, over range, bump test failed, bump test due, calibration due |
| Operating Conditions |
-20°C to 50°C, 0-95% RH, 86-106kPa |

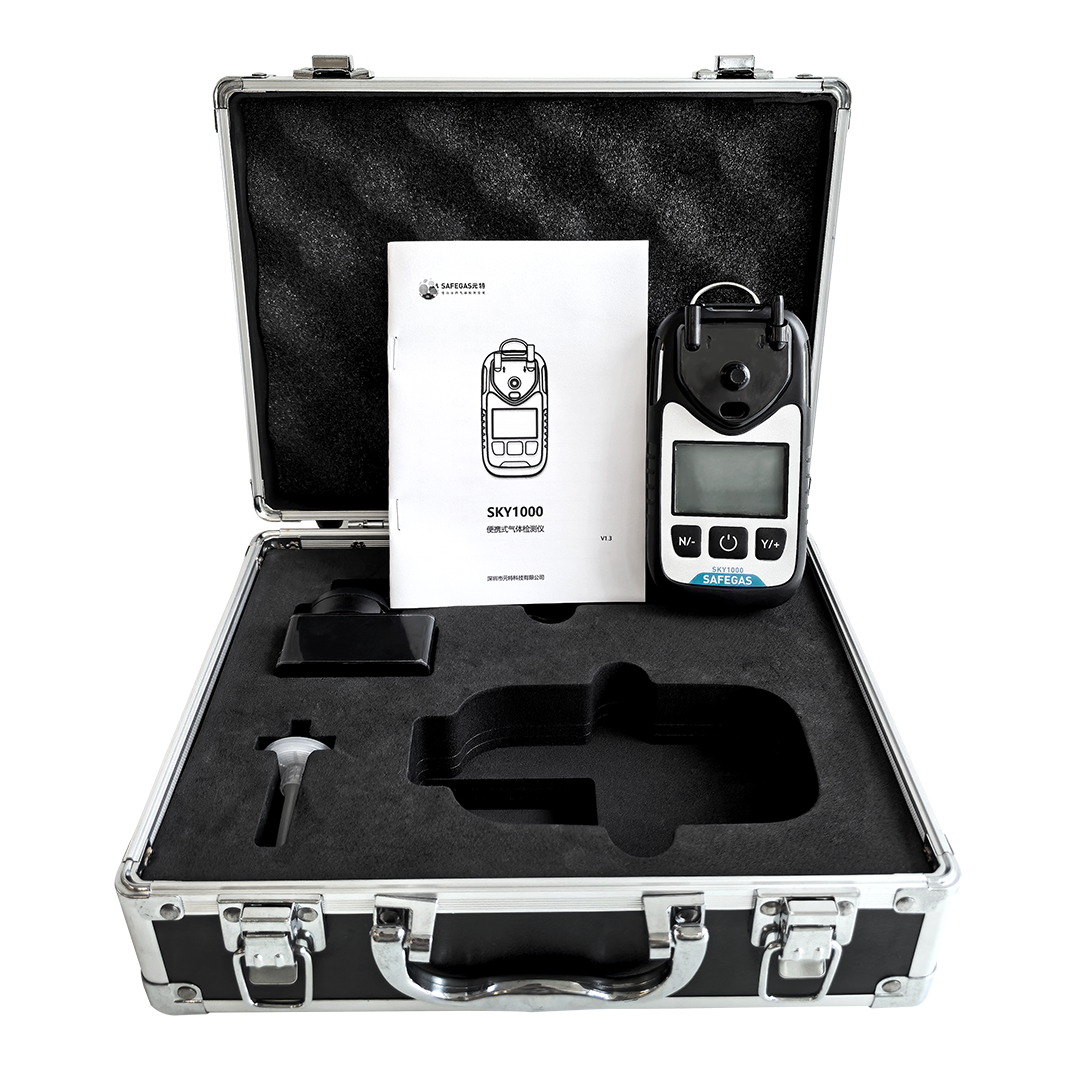

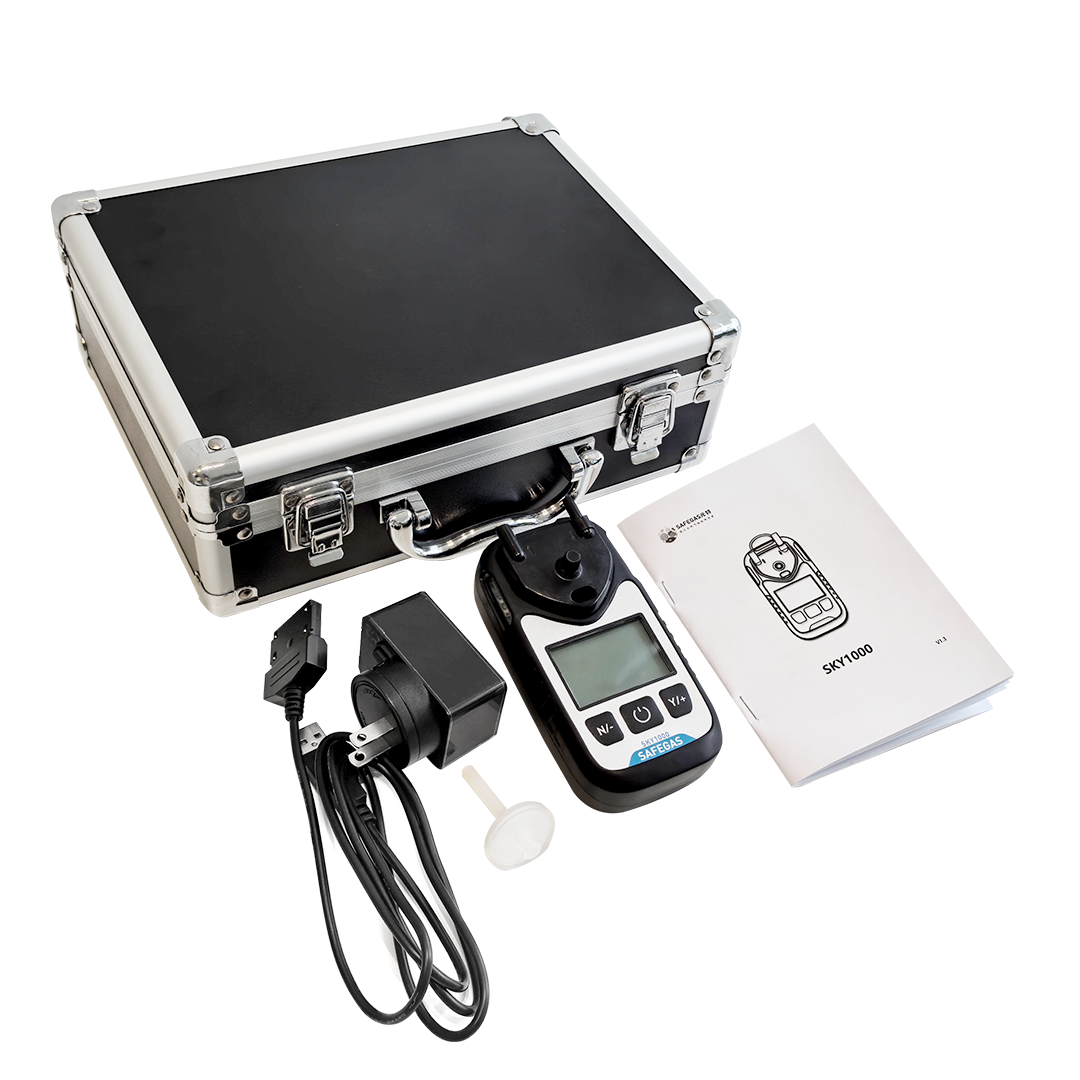

Standard Configuration
- One gas detector
- One pump adapter
- One water trap filter
- One cable
- One power adapter
- One aluminum suitcase
- One user manual
- One warranty card
Why Choose Our Products
- 25+ years of R&D team experience
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx, ATEX, CE
- Fast delivery: 5-7 days
- High capacity: 80,000 units annually
- Professional 24/7 customer service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in designing, producing, and selling gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Our product range includes portable detectors (MiniMeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000), fixed detectors (YT-95H, YT-98H, YT-96H, SG100, SG200), and controller panels (YT-1100H, YT-1600H).
Certifications
IECEx ATEX CE TEST Report ISO 9001 ISO 45001
The IECEx and ATEX explosion-proof certifications ensure product quality comparable to international brands like Honeywell, MSA, and RAE, with competitive pricing.
Our Clients
We have successfully partnered with major companies including Huawei, Coca-Cola, Samsung, and Nestle.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the minimum order quantity?
Usually 1 piece.
How about the quality of your products?
Our products use imported sensors and components and are fully certified for quality assurance.
How long is the warranty period?
The warranty period is 1 year from factory date, with lifetime maintenance support.
