Rumah > Produk> Detektor Gas Beracun> Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring

Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring

Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring
Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring
Informasi Dasar
Tempat asal: Cina
Nama merek: SAFEGAS
Sertifikasi: ATEX/IECEX
Nomor model: SG100
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kemasan koper aluminium
Waktu pengiriman: 3 hari kerja
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 100 buah/hari
Harga terbaik Hubungi sekarang
Informasi Detail
Gas terdeteksi: Gas beracun, oksigen, mudah terbakar, gas VOC Ukur rentang dan resolusi: Ditentukan sesuai dengan aplikasi
Ketepatan: ≤±2-5%FS (Tergantung pada sensor spesifik) Kelas tahan ledakan：: IECEX：Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ； ATEX：Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Tingkat Perlindungan: IP66/68 disipasi daya: Gas beracun<2,5W,gas mudah terbakar<4W
Mode komunikasi: 4-20mA ((kawat 3) 、RS485 1 ̇5V,Hart ((Opssional) Nirkabel: LORA, 4G ((Optional)
Menyampaikan: 3 relay, termasuk low/high/fault alarm relay ((Optional) Suhu kerja: 0℃～70℃（Sensor katalitik）, -20℃～50℃（Sensor elektrokimia）
CableEntries: 1 x 3⁄4 NPT & 1 xM 20 Sambungan kabel masuk Ukuran: 157.8x128.8x69.6mm
Berat: 1.0kg
Menyoroti:

fixed VOC gas detector

,

toxic gas continuous monitor

,

Safegas gas detection system

Deskripsi Produk

Product overview

Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring 0

SG100 series is a cost-effectivegas detector for continuous monitoring oftoxicgases, oxygen,flammable, VOCgases.

It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. .

With optional wirelessdata transmission,customer is able to review, download the data remotely.Supportbothmagneticandremote control,flexibleforsetting.











Product Feature



Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring 1●IP66/IP68 water & dust resistant

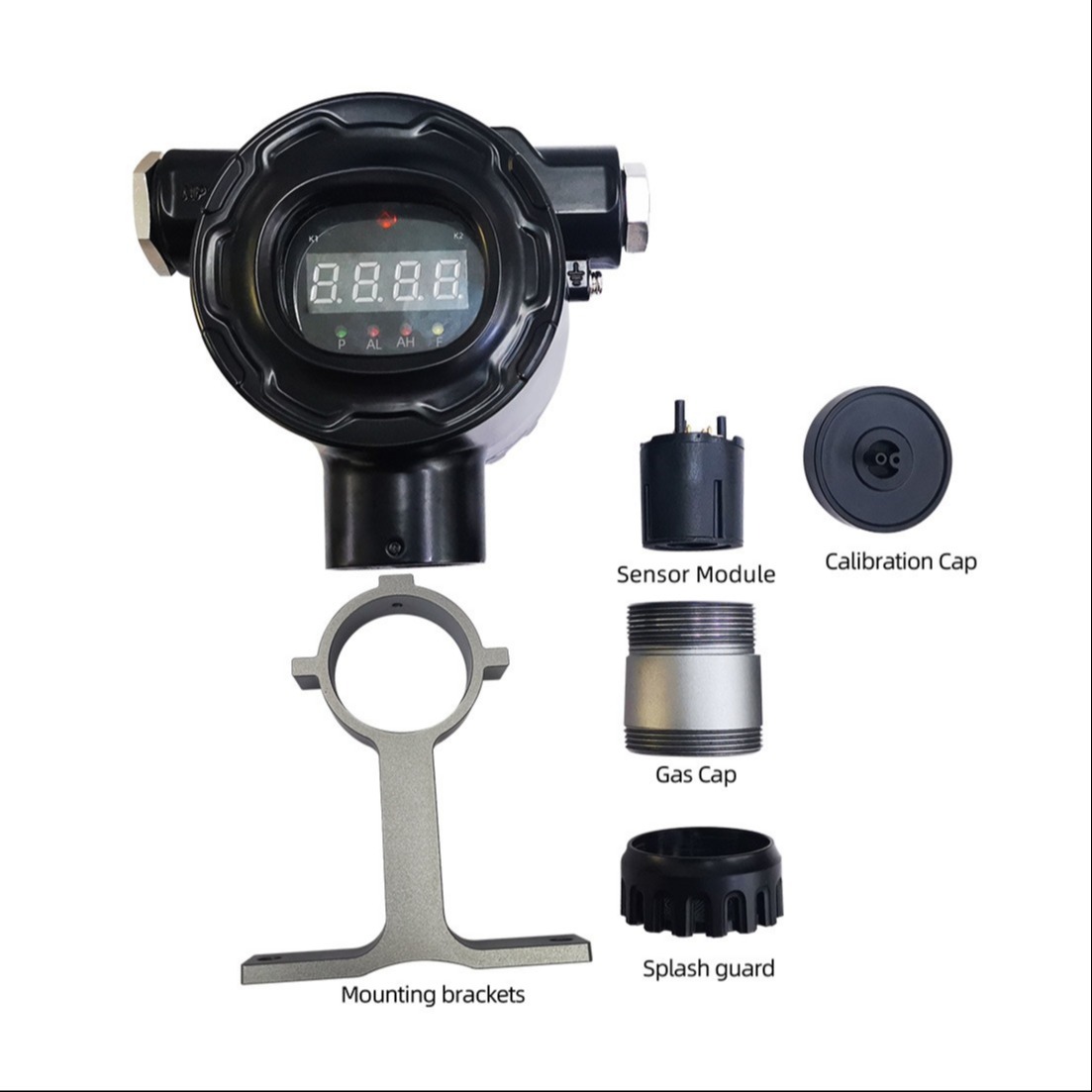

●Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier.



●With standard splash guard to protect sensor for outdoor installation or environment with water splash.



●Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation.

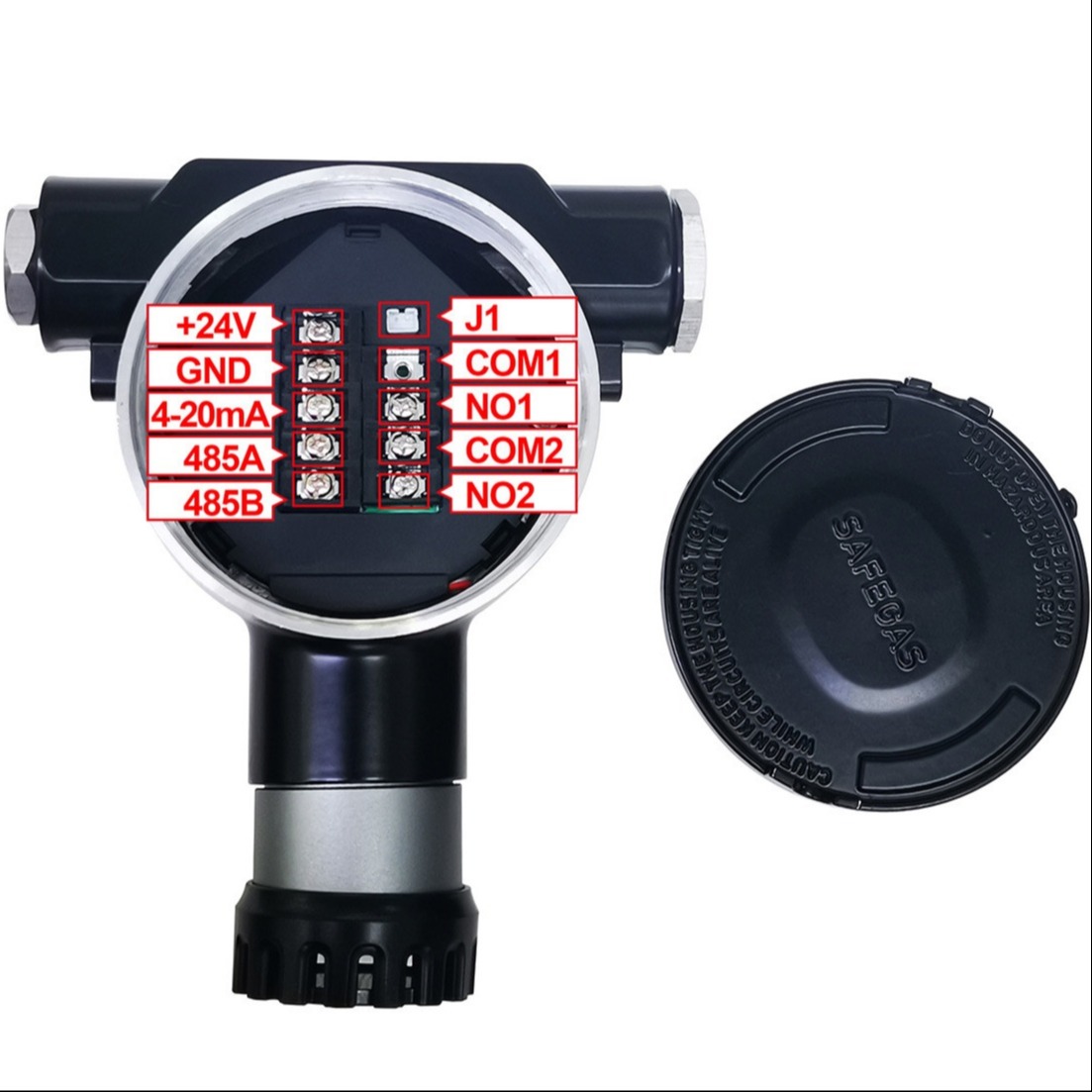

●Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.



●The detector comes with 3relays, including low/high/fault alarm relay(Optional)



●Support both magnetic andremote control, flexible for setting.





Label:

detektor gas berbahaya,

sistem pemantauan gas beracun,

peralatan pemantauan gas
