IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record

Informasi Dasar
Tempat asal: CINA
Nama merek: SAFEGAS
Sertifikasi: ATEX/EMC/IECEX
Nomor model: Micmeta
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Karton (22*16*11cm)
Waktu pengiriman: 3 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 3000 buah per bulan
Informasi Detail
Jenis gas: Dapat disesuaikan, hingga 5 gas Metode kerja: Pengambilan sampel difusi
Waktu respons (T90): Kurang dari 30 detik Platform kalibrasi: Stasiun Docking Opsional untuk melakukan tes kalibrasi dan benjolan harian
Baterai: Baterai lithium 3,7V, dapat diisi ulang Transmisi nirkabel: Transmisi nirkabel Bluetooth atau Lora opsional
Jam kerja: 24 jam Waktu pengisian daya: Kurang dari 6 jam
Sertifikasi: ATEX, CN, IECEX Tingkat Perlindungan: IP66/IP68
Berat (dengan baterai internal): 240g Catatan data: 1000 set
Catatan Acara: 100 set
Menyoroti:

24 Hours Working Time Multi Gas Detector

,

1000 Sets Data Record Gas Detection Instrument

,

100 Sets Events Record Portable Gas Analyzer


Deskripsi Produk

IECEX Certified Multi Gas Detector with IP66/IP68 Protection Grade and Back Clip
Product Overview

The Safegas Portable Multi Gas Detector is a lightweight, IECEX certified device with IP68 drop resistance featuring diffusion suction and a convenient back clip.

MicMeta is a multi-gas detector with IP66/IP68 protection that can detect 1-4 gases simultaneously. When configured for CO and H2S detection, it can monitor up to 5 gases concurrently.

This detector holds three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, making it suitable for use in Zone 0 and Zone 1 hazardous areas.

Features include an LCD screen with Chinese/English language support, two-level sound and light alarms with customizable settings, optional PC software for data download, and an optional docking station for simplified bump testing, calibration, configuration, and data recording.

Product Images

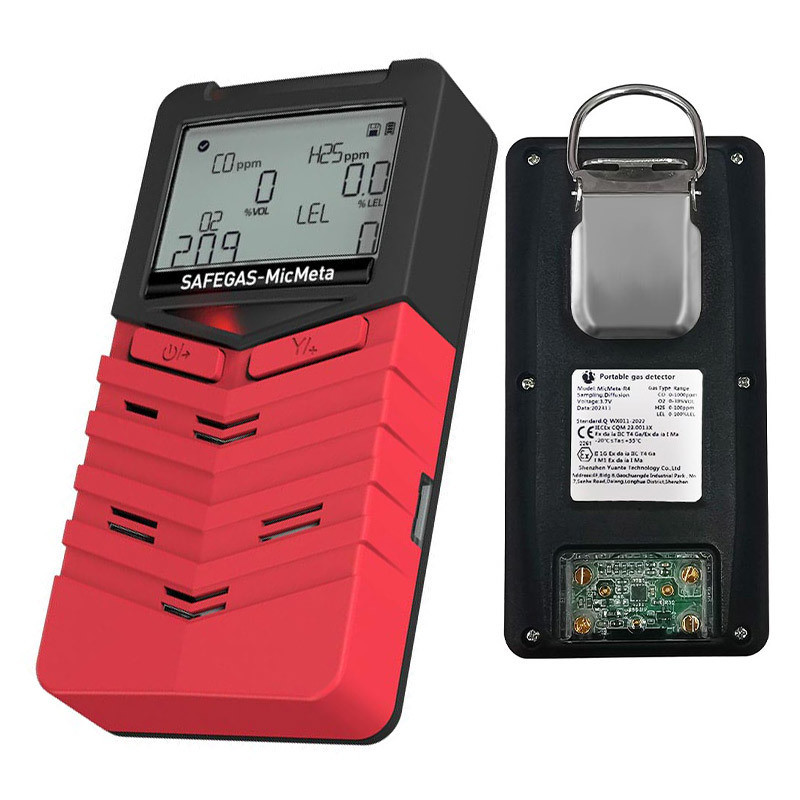

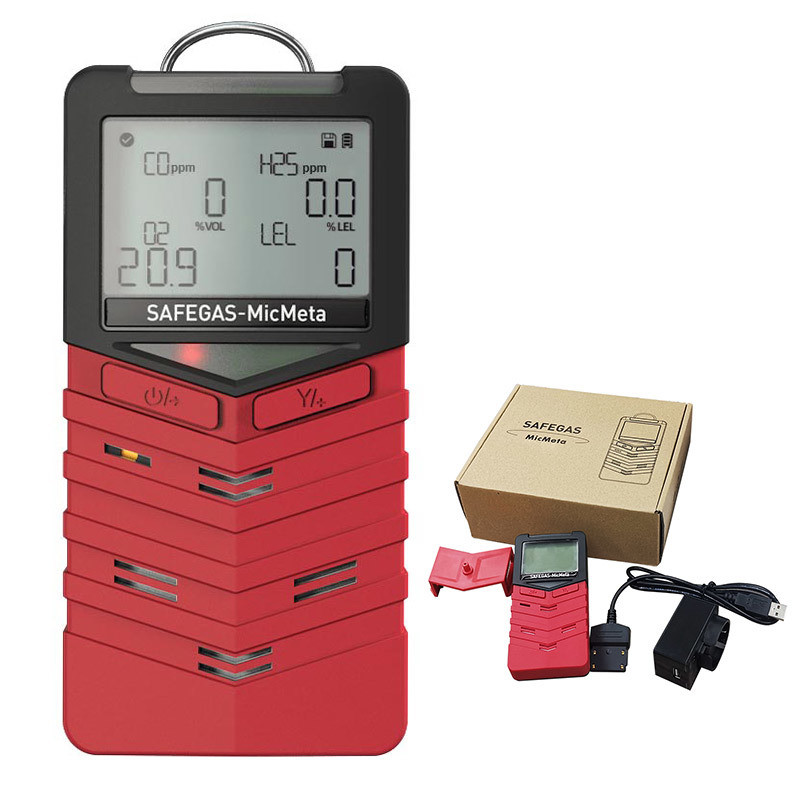

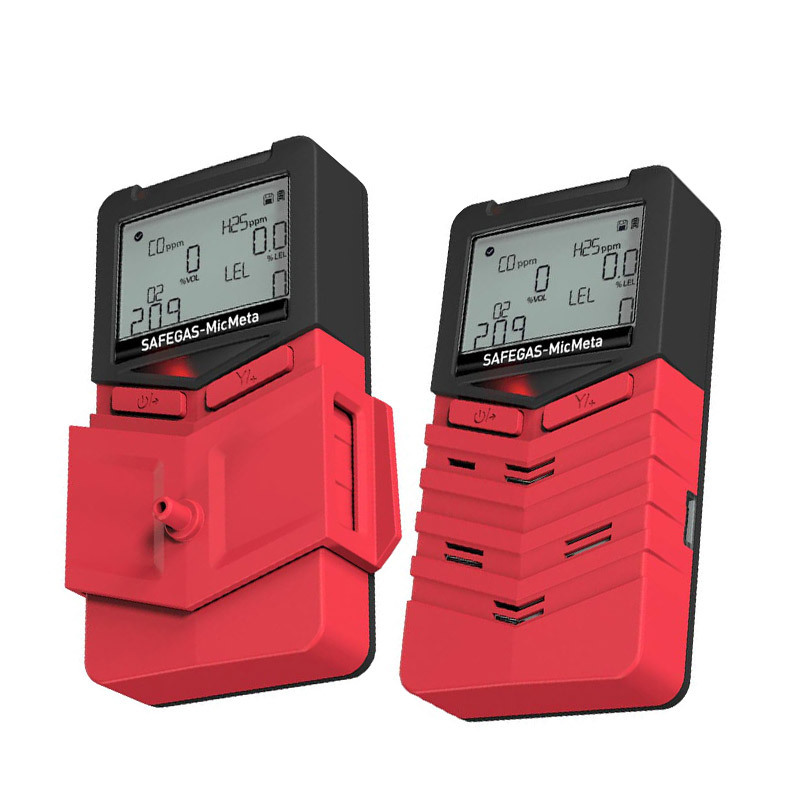

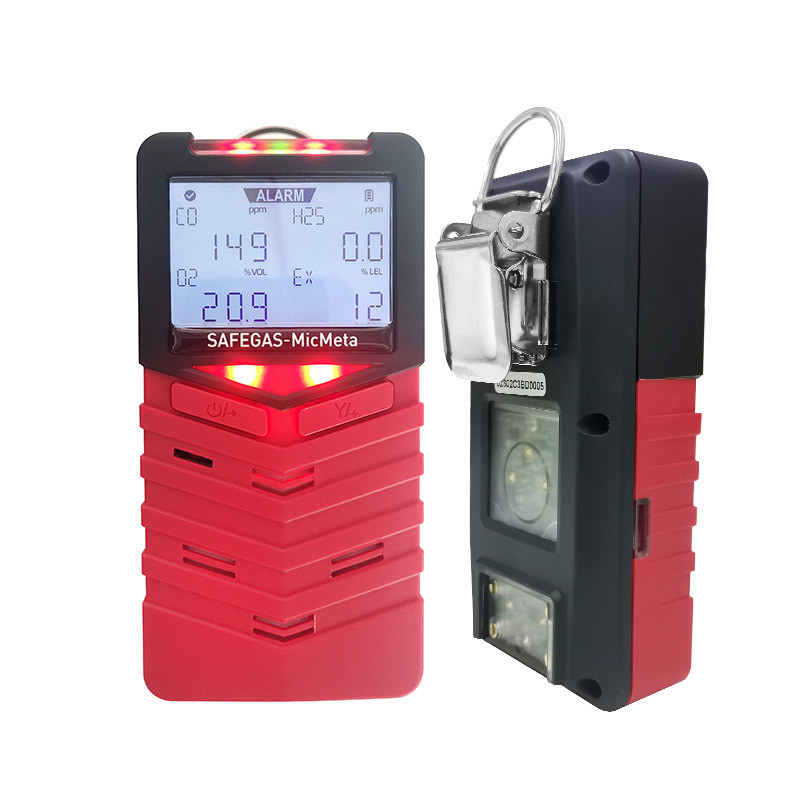

IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 0
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 1
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 2
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 3
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 4
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 5
Key Features
  • Compact and Lightweight: Only 240g with robust construction that withstands 1.5 meter drops and features IP66/IP68 waterproof/dustproof protection
  • User-Friendly Operation: Simple two-button control interface
  • Bright Visual Alarm: Wide-angle visual alarm bar for enhanced visibility
  • EMC Tested: Successfully passed anti-static interference tests for reliable operation
  • Ergonomic Design: Comfortable, wear-resistant back clip for easy carrying
Technical Specifications
Specification Details
Sampling Method Diffusion suction
Gas Type Customizable, detects up to 5 gases
Response Time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on sensor)
Display Segment code LCD display
Alarm System 95dB buzzer, vibration, flashing red bar, on-screen alarm status
Battery 3.7V rechargeable lithium (2300mAh)
Working Time 18h standby, <6h charging
Explosion-proof Grade IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
Protection Grade IP66/IP68
Dimensions 113*60*32mm (L*W*H)
Weight 200g (with battery)
Detectable Gases
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 6
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 7
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 8
Applications
Chemical Industry Environmental Monitoring Healthcare Automotive Industrial Safety Wastewater Treatment Oil & Gas Food Production Mining
Why Choose Our Product?
  • 25+ years of R&D team experience
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx (China's only), ATEX, CE
  • Fast delivery: 5-7 days
  • Annual production capacity: 80,000 units
  • 24/7 professional support
Frequently Asked Questions
Q: What is a gas detector?
A: A gas detector is an instrument for detecting gas leakage concentrations, available in portable and fixed configurations.
Q: What gases can be detected?
A: Combustible gases (methane, LPG, acetylene) and toxic gases (CO, H2S, ammonia, chlorine, etc.).
Q: What does ppm mean?
A: ppm (parts per million) indicates gas volume concentration - the volume of gas per million volumes of air.
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 9
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 10
