SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart

Informasi Dasar
Tempat asal: CINA
Nama merek: SAFEGAS
Sertifikasi: Chinese EX certificate
Nomor model: Sky8000
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Karton
Waktu pengiriman: 10 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 300 buah per bulan
Informasi Detail
Metode pengambilan sampel: Memompa hisap Warna: Hitam Dengan Hijau
Spesifikasi Probe:: Diperlukan, pilih sesuai dengan suhu dan panjang probe Fungsi cetak: Opsional dengan printer portabel internal atau printer bluetooth eksternal
Kekuatan: Baterai Lithium Polymer Kelembaban: 0~95%RH (tanpa kondensasi)
Suhu: -20 ℃ ~+50 ℃ Berat: 3700g
Jaminan: 12 bulan
Menyoroti:

portable gas analyzer with LCD display

,

multi gas detector for real-time data

,

gas analyzer with 1-18 gas monitoring


Deskripsi Produk

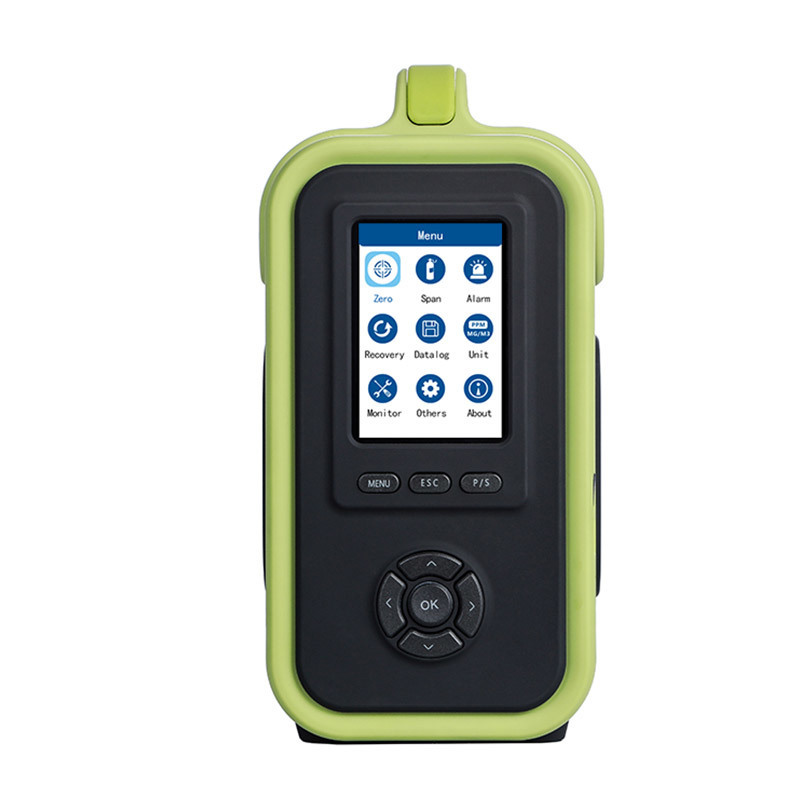

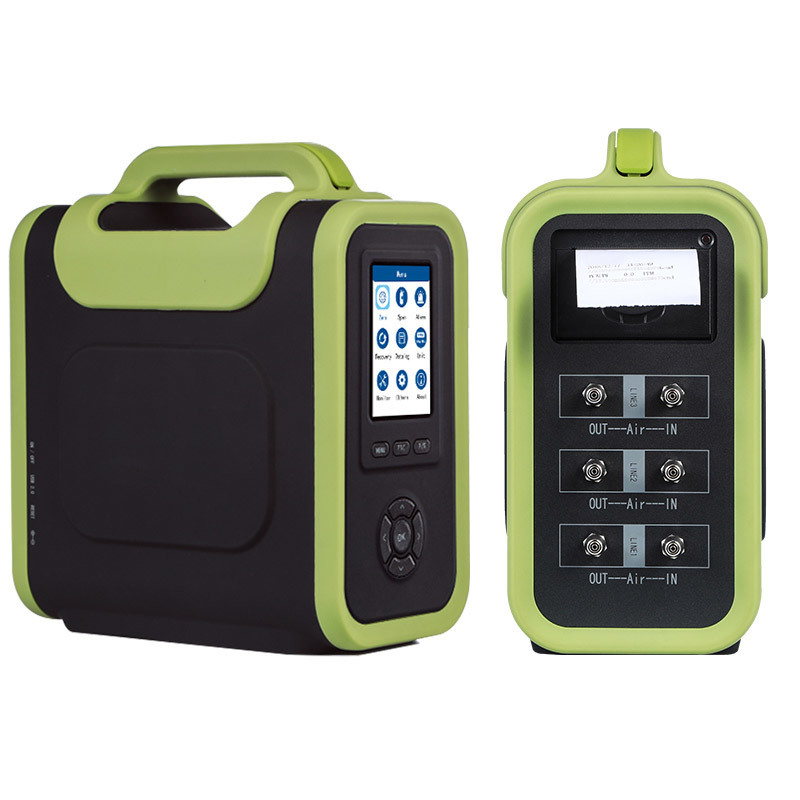

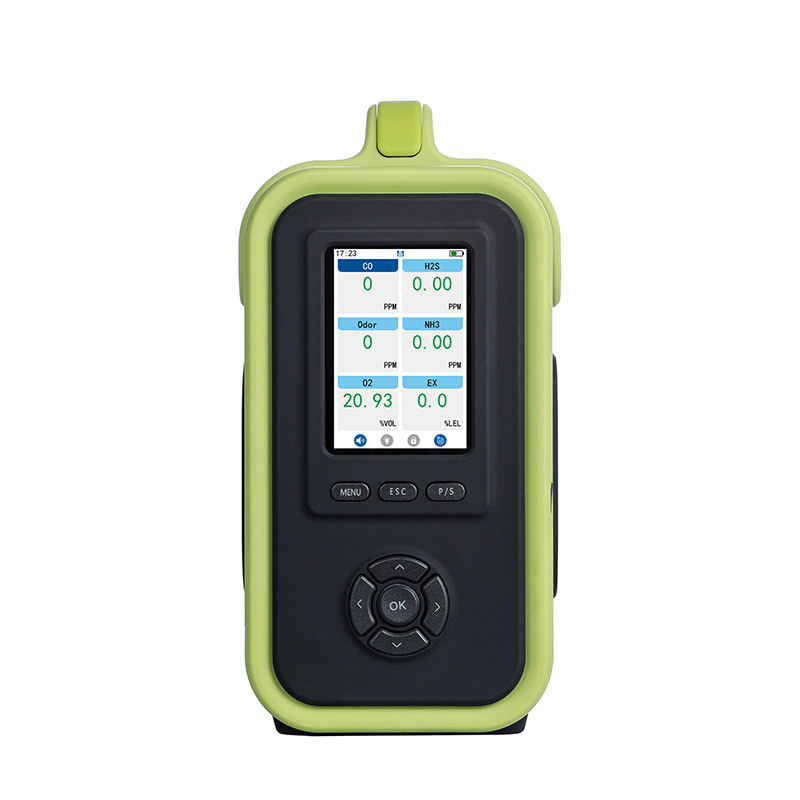

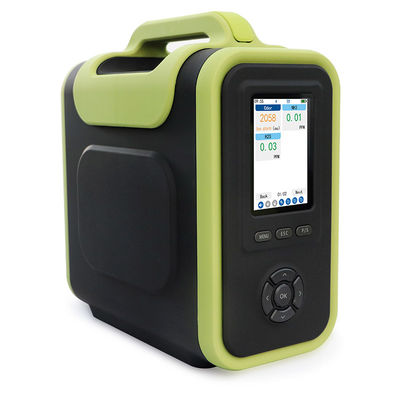

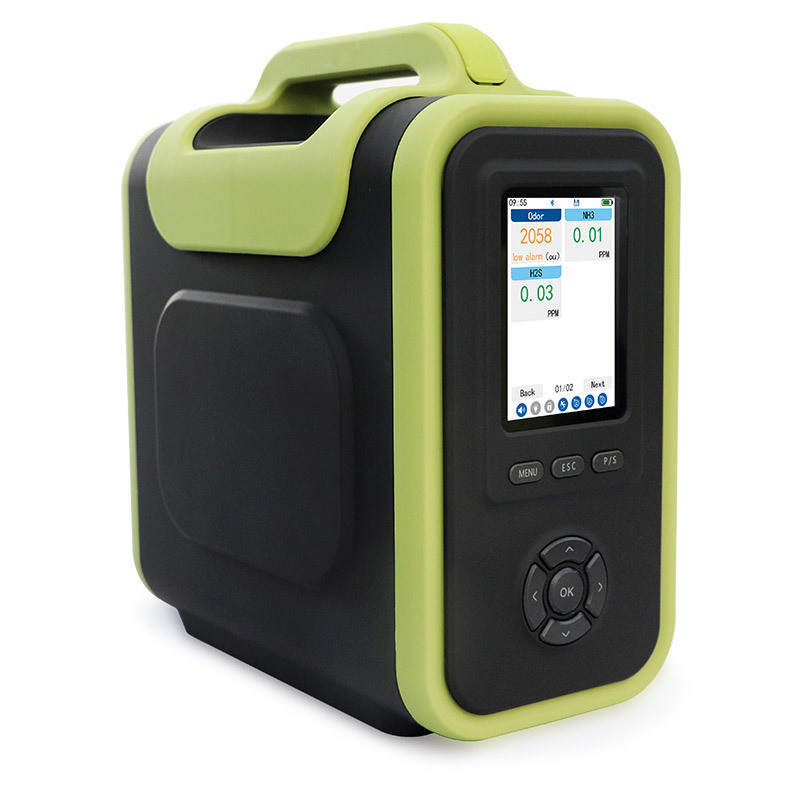

Product Name: SKY8000 Portable Gas Analyzer
Product Overview:

SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in factory, scientific research, university and complex working environment. There are 4 different version to support different applications including SKY8000-M gas analyzer to monitor gases in ambient environment; SKY8000-AQ air quality gas analyzer to monitor gases, particle counter, dew point, temperature and humidity; SKY8000-OU odor gas analyzer to monitor H2S, NH3, odor; SKY8000-EM emission gas analyzer to monitor high gas concentration gases in flue gas environment.

Product Advantage:
  1. Support to monitor 1-18 gas types
  2. 3.5-inch color LCD display support both real time data and chart, user friendly
  3. Built-in pump gas sampling, faster response
  4. Equipped with multi-layer filtering, protect sensor from oil, water vapour, dust
  5. Standard 32G SD memory card to store and export data by U-disk easily
  6. Support Lora and other wireless communication (Optional)
  7. Support built-in printer for real time data printing (Optional)
  8. High temperature, high humidity environment measurement (Optional)
Technical parameters:
Gas Detected O2, CO2, CO, NO, NO2, SO2, VOC, etc to be specified according to application
Detection Principle Depend on gas type and application
Measure range Specified according to application
Resolution Specified according to application
Display Gas formula, real-time data, real-time curve, battery, time, pump condition, wireless status, printer status
Alarm Buzzer, red LED and alarm status on the display, fault alarm, low battery alarm
Data storage Independent SD memory card, standard 32G, measurement data can be record automatically, customizable record time interval
Data transmission (Optional) RS485 signal output, USB interface data transmission, with PC software, can download storage, analyze and print data
Print function (Optional) Optional with internal portable printer or external bluetooth printer
Print content (Optional) Date, Time, Gas, Concentration, Stat, Unit
Charger Standard Micro-USB charging port. With 9V/2A charger
Language Chinese/English
Network frequency 2.4G high frequency
Wireless transmission distance Bluetooth is less than 10m, and WIFI outdoor single point is less than 500m
Battery Large capacity rechargeable lithium battery, 5200mAh working hours are more than 32h with single gas and 24h with six gases together
Precision ≤±2%F.S (Higher precision can be customized)
Pump flow rate 500ML/Min
Working Humidity 0~95%RH (no condensation) (optional filter device is available if high humidity)
Temperature -40℃~+70℃, Optional gas sampling gun, can detect up to 1200 degrees gas concentration
Screen 3.5-inch hd LCD screen with resolution 320*480
IP grade IP66
Explosion-proof Ex ic IIC T3 Gc
Warranty 12 months
Size (H*W*D) 260*230*120mm
Weight 3700g
Product Images
SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 0 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 1 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 2
Company Profile

Established in 2010, Shenzhen Yuante Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic,Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.

For years, Yuante always insists on the management concept Market is orientation; Innovation is motivation; Quality to survival; Development to growth. With friendly, open and strict corporate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team. All the staff cooperates well in product development, production and maintenance, and has a deep understanding of the concept of customer oriented and has the service spirit through the company operation and management, to win the trust and support from customers.

The essence of a detector is the accuracy and faster response. Depending on years of measurement experience and unique solutions, through independent research and development, cooperative development and learning overseas latest technology, Yuante's products are advanced beyond the domestic brands and ahead of the global brands. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.

R&D team
SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 3 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 4 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 5 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 6 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 7
Gas Detection Capabilities
SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 8 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 9 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 10
Product Line
SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 11
Certifications
SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 12
Cooperated Clients
SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 13
FAQ
SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 14 SKY8000 Portable Gas Analyzer Support to Monitor 1-18 Gas Types With LCD Display for Real Time Data and Chart 15
Why Choose Us

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(20.00%),North America(17.00%),South America(15.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Central America(5.00%),Africa(3.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors

4. Why should you buy from us not from other suppliers?
We have independent dust-free production workshop, modern production equipment, and professional staff. We implement flexible and competitive price and diversified sales strategy. We provide 24h/day service to users, rapid in response, technical guidance.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
