Built-In Pump Portable Gas Detector With Man Down Alarm Function

Informasi Dasar
Tempat asal: CINA
Nama merek: SAFEGAS
Sertifikasi: ATEX/EMC/IECEX
Nomor model: Sky3000
Kuantitas min Order: 1
Harga: dapat dinegosiasikan

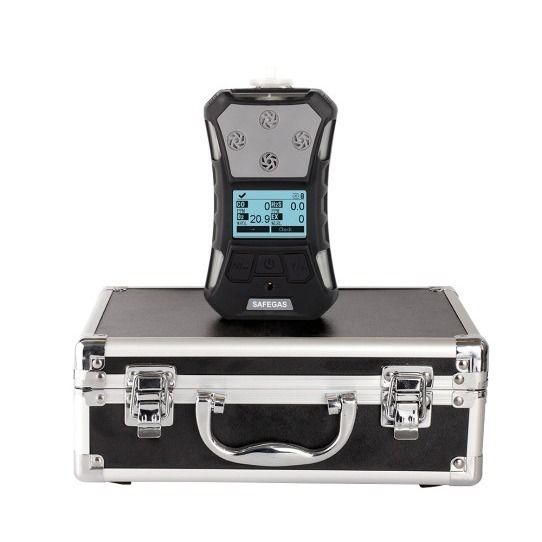

Kemasan rincian: Koper aluminium
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 1000 buah per bulan
Informasi Detail
Gas terdeteksi: Untuk ditentukan Prinsip Deteksi: Untuk ditentukan
Rentang ukuran: Ditentukan sesuai dengan aplikasi. Resolusi: Ditentukan sesuai dengan aplikasi.
Waktu respons: ≤20 detik Presisi: ≤±1-5%FS kecuali untuk gas khusus
Bahasa: Cina/Inggris/Rusia/Polandia (lebih banyak bahasa dapat disesuaikan) Menguji dan mengkalibrasi secara otomatis setelah power-on: Termasuk reset, nilai maksimum (maks), nilai minimum (min), stel, nilai TWA
Satuan: Ppm, mg/m³, %lel, %vol Menampilkan: LCD (160 x 96), 180 ° berputar
Catatan data: 100.000 bacaan, interval penyimpanan dapat disesuaikan dari 5 hingga 3600 detik, data dapat diekspor
Menyoroti:

portable gas detector with pump

,

multi gas detector with alarm

,

gas detector with man down function


Deskripsi Produk

Built-In Pump Portable Gas Detector With Man Down Alarm Function

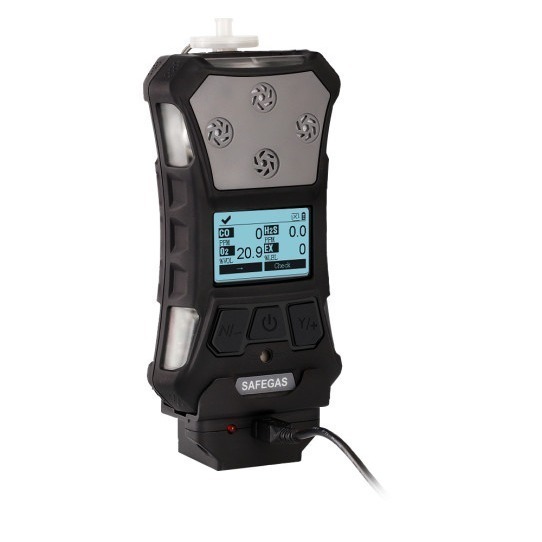

SKY3000 Portable Pumping Gas Detector

SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It's with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.

Product Advantages
  • IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs.
  • Standard man down alarm function
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
  • One press to restore factory settings.
  • Large graphical display can rotate 180°
  • Standard water trap filter to protect the sensor
  • With docking station to perform daily bump test and calibration (Optional)
  • Wireless data transmission including Lora, Bluetooth (Optional)
  • Support backlight function the backlight time can be manually set
  • Low power consumption, long stand by time
  • Support firmware upgrade remotely
Technical Parameters
Parameter Specification
Gas Detected To be specified
Detection Principle To be specified
Measure range Specified according to application.
Resolution Specified according to application.
Response time ≤20 seconds
Precision ≤±1-5%F.S except for special gases
Language Chinese/English/Russian/Polish (More language can be customized)
Automatically test and calibrate after power-on Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM, mg/m³, %LEL, %VOL
Display LCD (160 x 96), 180° rotate
Backlight Turned on automatically when alarming, the backlight time can be manually set
Data record 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
Alarm 95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery 3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours More than 15 hours in continuous pumping mode
Charger Travel charger with DC interface, charging time ≥ 4 hours
Working temperature -20℃~+50℃
Explosion-proof grade IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Humidity 10~90%RH (no condensation)
Certification (EU regulations) 2004/34/UE (ATEX)
Protection grade IP67
Environmental pressure 86~106Kpa
Size 157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)
Weight 365g (including battery, belt clip and filter)
