Rumah > Produk> Detektor Gas Tunggal> IECEX ATEX Certified Single Gas Detector with IP68 Protection

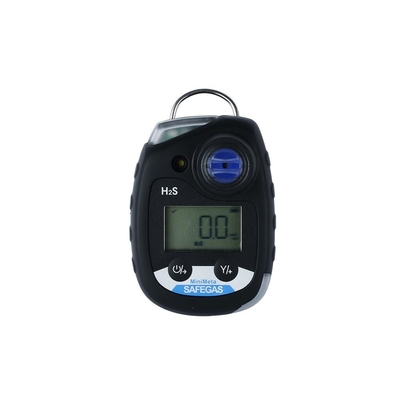

IECEX ATEX Certified Single Gas Detector with IP68 Protection

IECEX ATEX Certified Single Gas Detector with IP68 Protection
IECEX ATEX Certified Single Gas Detector with IP68 Protection
IECEX ATEX Certified Single Gas Detector with IP68 Protection IECEX ATEX Certified Single Gas Detector with IP68 Protection IECEX ATEX Certified Single Gas Detector with IP68 Protection IECEX ATEX Certified Single Gas Detector with IP68 Protection
Informasi Dasar
Tempat asal: CINA
Nama merek: SAFEGAS
Sertifikasi: IECEX/ATEX/EMC/CE
Nomor model: Minimeta
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Karton
Waktu pengiriman: 3 hari kerja
Syarat-syarat pembayaran: , T/t
Menyediakan kemampuan: 100 buah/hari
Harga terbaik Hubungi sekarang
Informasi Detail
Gas terdeteksi: Ditentukan sesuai dengan aplikasi. Rentang Pengukuran:: Ditentukan sesuai dengan aplikasi.
Resolusi:: Ditentukan sesuai dengan aplikasi. Prinsip:: Prinsip elektrokimia
Ketepatan:: ≤±2-5%FS (Tergantung pada sensor spesifik) Waktu respons (T90):: 15-30 detik (tergantung pada sensor spesifik)
Satuan:: Ppm, mg/m3, %vol Menampilkan:: Nama gas, satuan konsentrasi, nilai terukur, daya baterai
Modus alarm:: Suara, cahaya, alarm getaran, nilai alarm tinggi dan rendah dapat diatur sendiri Jenis alarm:: Alarm rendah, alarm tinggi, STEL, TWA, kalibrasi opsional baterai lemah dan uji benturan
Mode Catu Daya:: Baterai kering 3.6V (tidak dapat diteliti Tingkat tahan ledakan:: ExiaIICT4Ga
Kelas Perlindungan:: IP68 Standar Eksekutif:: GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019,
Suhu kerja:: -20℃～55℃ Kelembaban Kerja ：: 0-95%RH (tanpa kondensasi)
Tekanan Udara yang Bekerja ：: 86~106kpa Ukuran:: 90*60*33mm (panjang*lebar*kekandelan)
berat:: 125g (Dengan Klip)
Menyoroti:

IECEX ATEX certified gas detector

,

IP68 single gas detector

,

compact 90x60x33mm gas detector

Deskripsi Produk

IECEX ATEX Certified Single Gas Detector with IP68 Protection
Product Overview

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.

Product Advantages
  • IP68 water- and dust-resistant case
  • Low power consumption with 2 years standby time, no need battery charge and calibration
  • With Single /multi unit docking station to perform daily bump test and calibration (Optional)
  • With event and data logging function (optional)
  • With self-test function, which can improve safety by automatic self-test
  • Small size, light weight and with back clip for easily carry
  • 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
  • Real time value, TWA, STEL, MAX, MIN multiple data display
Technical Parameters
Parameter Specification
Gas Detected Specified according to application
Detection Principle Diffusion
Measure range Specified according to application
Resolution Specified according to application
Accuracy ≤±2-5%FS (depending on the specific sensor)
Response time(T90) 15-30s (depending on the specific sensor)
(Detection) Principle Electrochemical principle
Unit PPM, mg/m³, %VOL
Display Gas name, concentration unit, measured value, battery power
Alarm mode Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due
Power supply mode 3.6V dry battery (non-rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90×60×33mm (length×width×thickness)
Weight 125g (With Clip)
Product Images

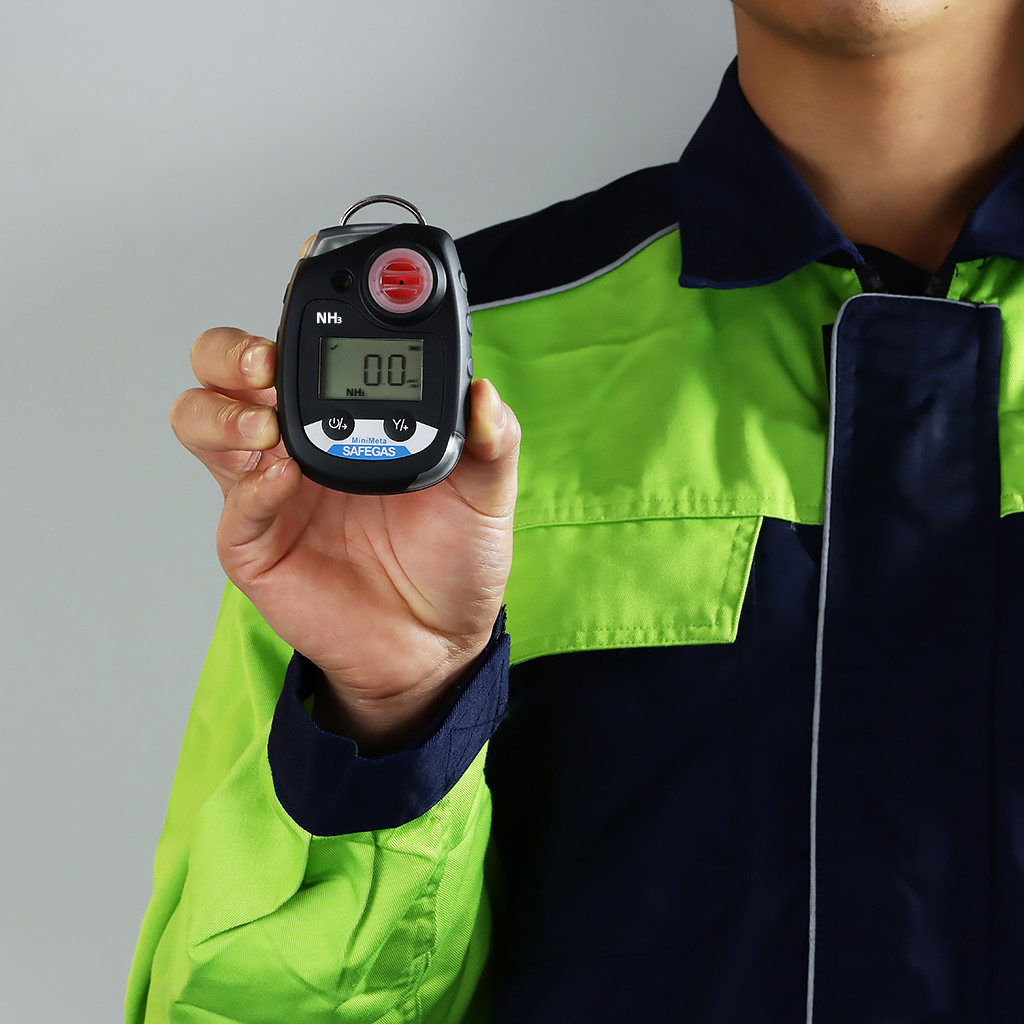

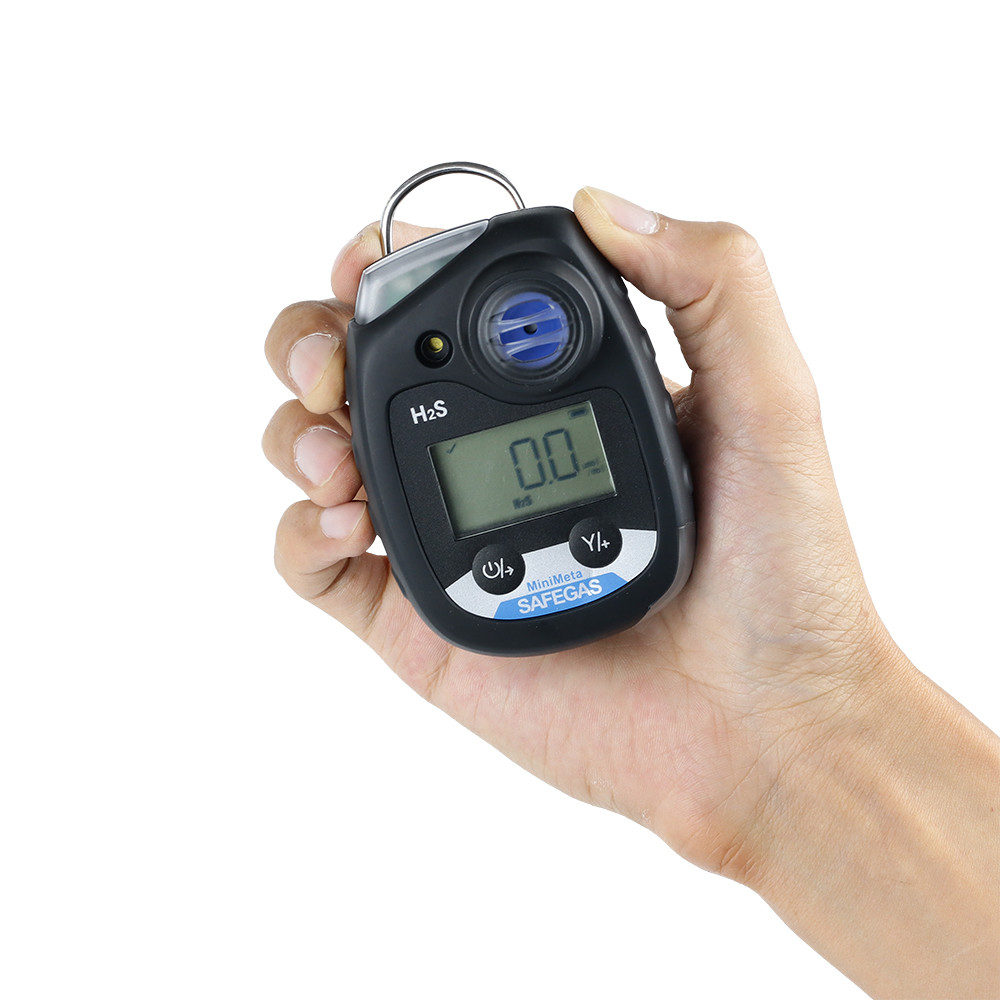

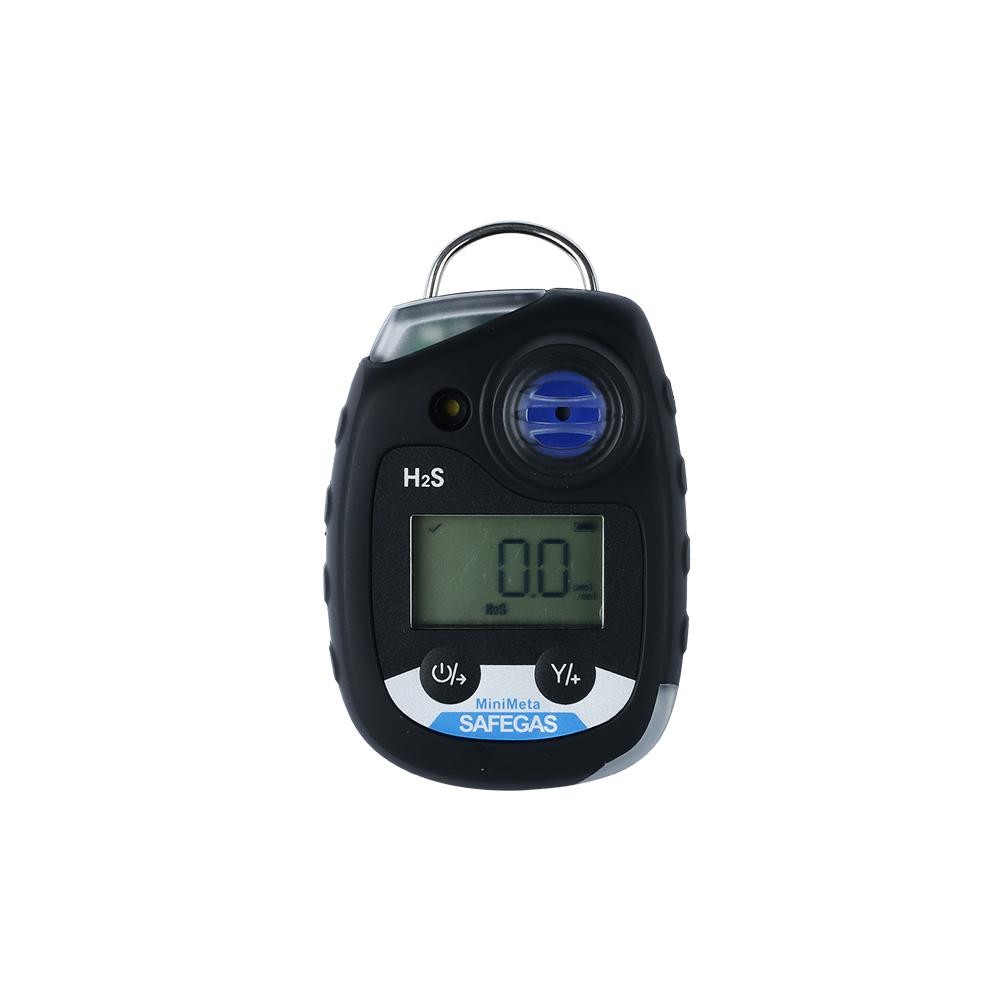

IECEX ATEX Certified Single Gas Detector with IP68 Protection 0 IECEX ATEX Certified Single Gas Detector with IP68 Protection 1 IECEX ATEX Certified Single Gas Detector with IP68 Protection 2 IECEX ATEX Certified Single Gas Detector with IP68 Protection 3 IECEX ATEX Certified Single Gas Detector with IP68 Protection 4
Package

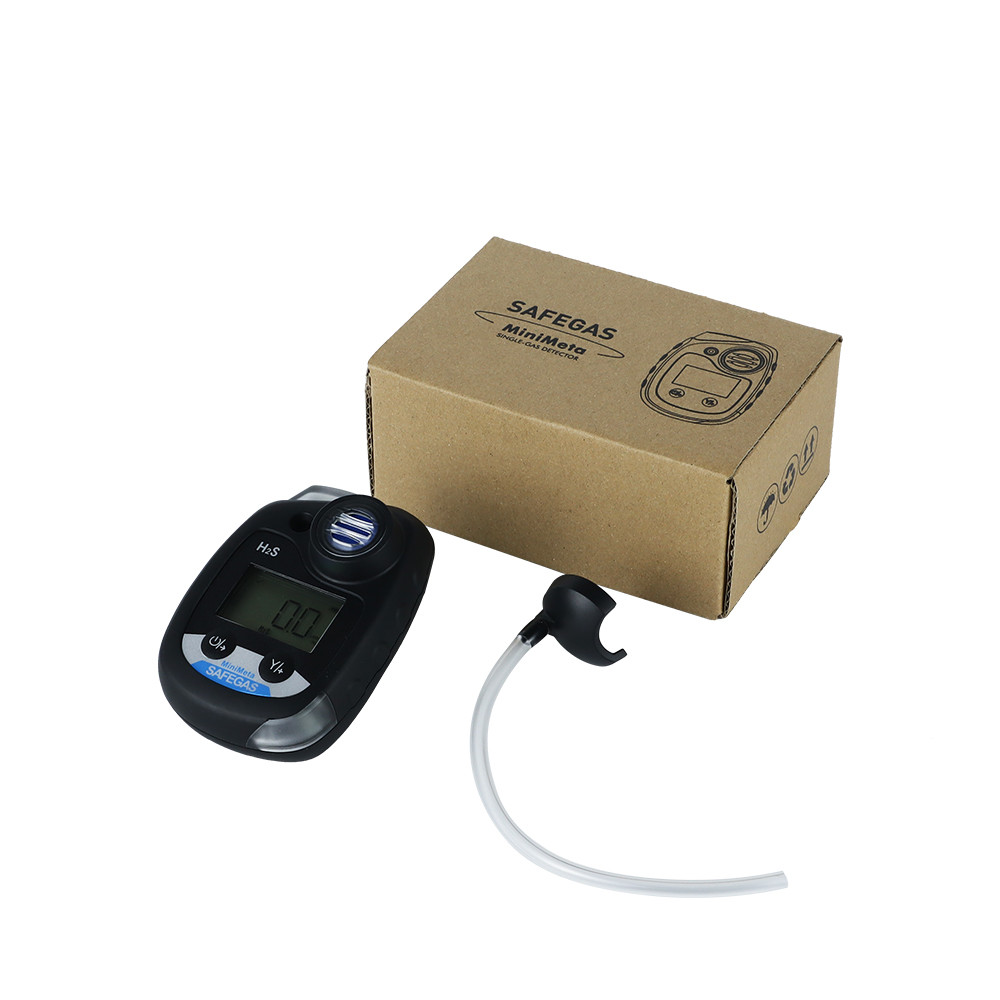

IECEX ATEX Certified Single Gas Detector with IP68 Protection 5
Company Information
IECEX ATEX Certified Single Gas Detector with IP68 Protection 6 IECEX ATEX Certified Single Gas Detector with IP68 Protection 7 IECEX ATEX Certified Single Gas Detector with IP68 Protection 8 IECEX ATEX Certified Single Gas Detector with IP68 Protection 9 IECEX ATEX Certified Single Gas Detector with IP68 Protection 10
Certifications
IECEX ATEX Certified Single Gas Detector with IP68 Protection 11 IECEX ATEX Certified Single Gas Detector with IP68 Protection 12
Cooperated Customers
IECEX ATEX Certified Single Gas Detector with IP68 Protection 13
FAQ
IECEX ATEX Certified Single Gas Detector with IP68 Protection 14 IECEX ATEX Certified Single Gas Detector with IP68 Protection 15
Product Video

IECEX ATEX Certified Single Gas Detector with IP68 Protection 16
